BOXY DIR

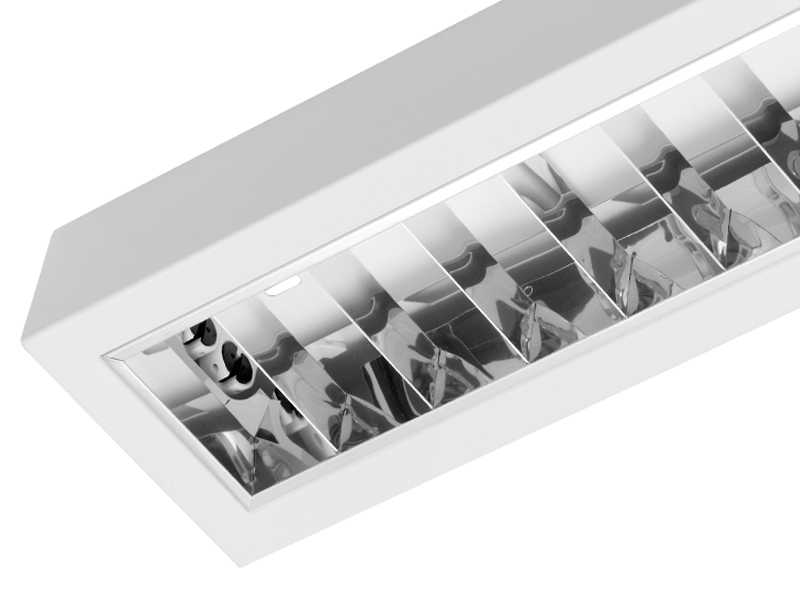

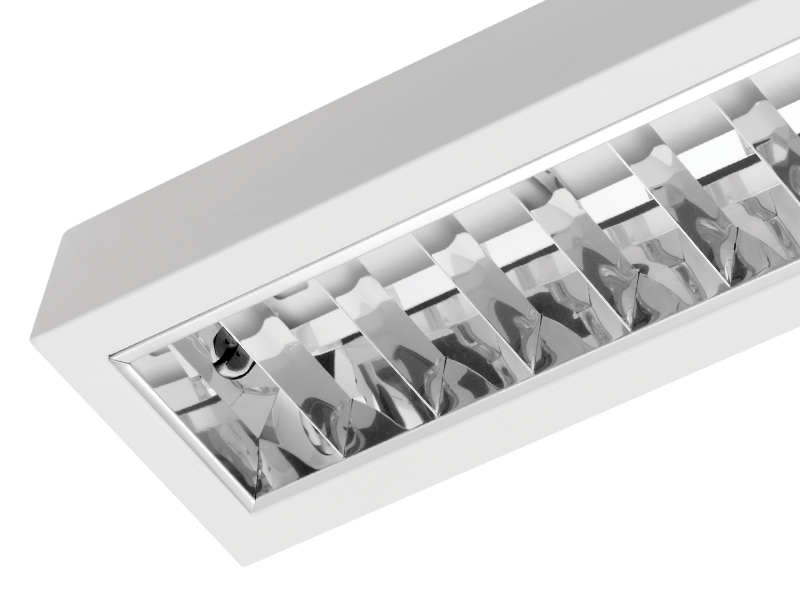

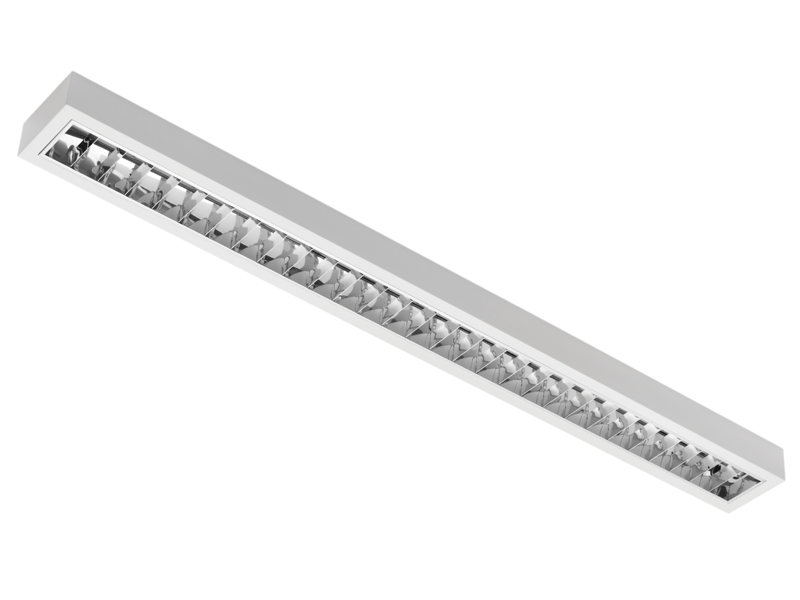

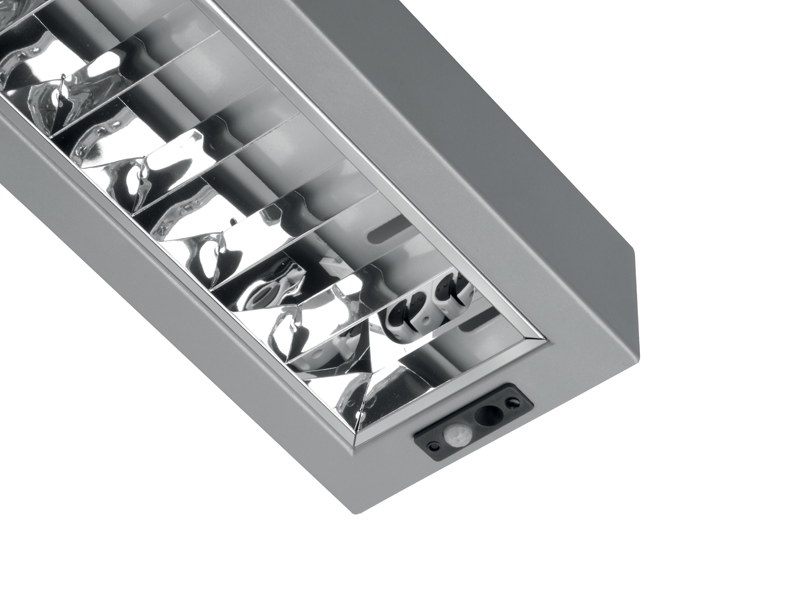

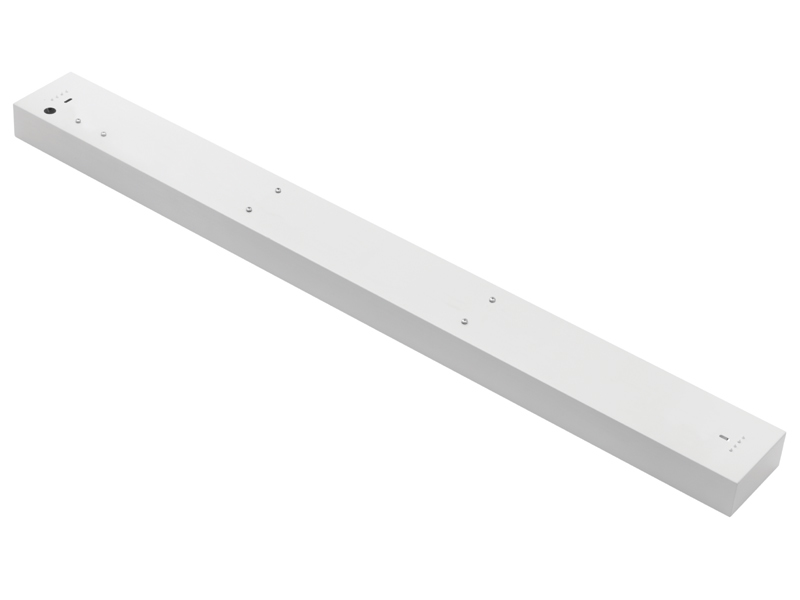

Luminaire for T5 fluorescent lamps with direct light distribution. Luminaire is equipped with double parabolic louvre made of anodised aluminium, suitable for VDU workstations (max. luminance of light emitting area is in accordance with EN 12464-1). Luminaire housing made of 0,6mm sheet steel, white powder coated finish (RAL9003). Another material of louvre or another surface finish available on request. Luminaire is designed for direct mounting on solid surface or for suspended installation.

Available also in version BOXY LINE, where single luminaires are fixed together by using of sheet steel connecting pieces, inserted inside luminaire profiles.

Lamp	LED
Lamp holder	G5
Class	I
Ingress protection	IP20
Weight	2.4-3.3kg

INSTALLATION TYPE
• SUR – mounting on solid surfaces
• SUS – suspended luminaire

OPTICAL SYSTEM
• PSL (parabolic specular louvre) – polished, anodized aluminium, double parabolic louvre with glare prevention
• PML (parabolic matt louvre) – matt, anodized aluminium, double parabolic louvre
• louvre attached to the housing with fast-mounting springs, tool free lamp replacement.

ELECTRICAL EQUIPMENT
• electronic control gear for linear fluorescent lamps T5
• lamp holders G5
• 3 or 5-pole screwless terminal block with strain relief, max. 2,5mm2
• cable opening entry completed with cable gland
• possibility of mounting into one continuous lighting row

OPTIONAL EQUIPMENT
• including lamps
• wired with multi-watt control gear
• wired with emergency unit (1 or 3h)
• wired with dimmable electronic control gear (DIM 1-10V, DSI, DALI)
• various colour finishing

SPECIFICATION

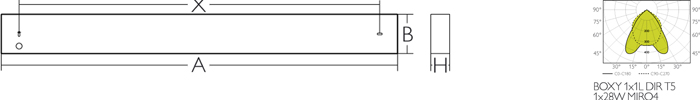

Type	A (mm)	B (mm)	H (mm)	X (mm)	kg
BOXY DIR T5 1x28W	1209	120	58	1100	2,4
BOXY DIR T5 1x54W	1209	120	58	1100	2,4
BOXY DIR T5 1x35W	1509	120	58	1350	3,3
BOXY DIR T5 1x49W	1509	120	58	1350	3,3
BOXY DIR T5 1x80W	1509	120	58	1350	3,3
BOXY DIR T5 2x28W	1209	120	58	1100	2,4
BOXY DIR T5 2x54W	1209	120	58	1100	2,4
BOXY DIR T5 2x35W	1509	120	58	1350	3,3
BOXY DIR T5 2x49W	1509	120	58	1350	3,3
BOXY DIR T5 2x80W	1509	120	58	1350	3,3

Code	Type
BO0000000T51028	BOXY DIR T5 1x28W
BO0000000T51054	BOXY DIR T5 1x54W
BO0000000T51035	BOXY DIR T5 1x35W
BO0000000T51049	BOXY DIR T5 1x49W
BO0000000T51080	BOXY DIR T5 1x80W
BO0000000T52028	BOXY DIR T5 2x28W
BO0000000T52054	BOXY DIR T5 2x54W
BO0000000T52035	BOXY DIR T5 2x35W
BO0000000T52049	BOXY DIR T5 2x49W
BO0000000T52080	BOXY DIR T5 2x80W

Control gear	Optics	Colour	Lamp	Emergency unit	Accessories

ECG	PSL	RAL 9003
DIM 1-10V	PML	RAL 9006
DALI		RAL 9007
