SKY SUR

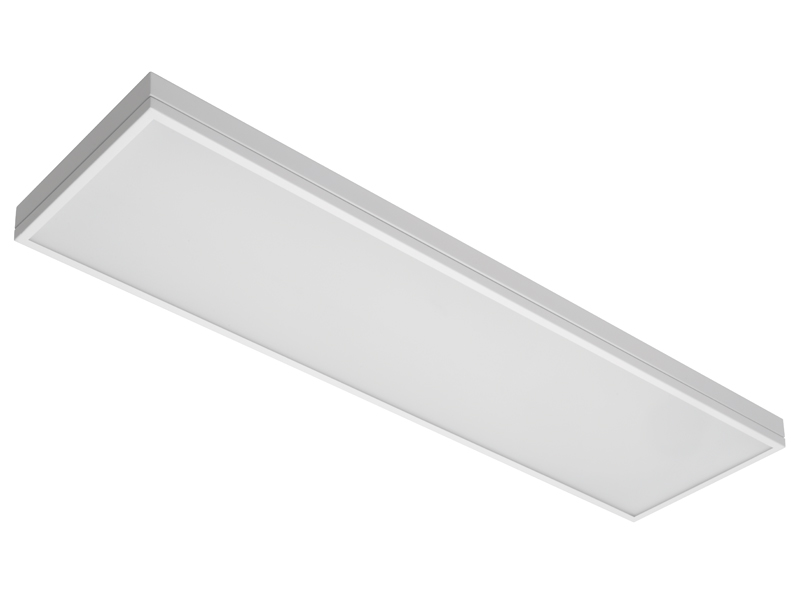

Surface mounted luminaire with high efficient LED modules, primary designed for energy efficient illumination of office areas. Optical system created by microprismatic diffuser provides pleasant diffuse and glare-free lighting characteristics.

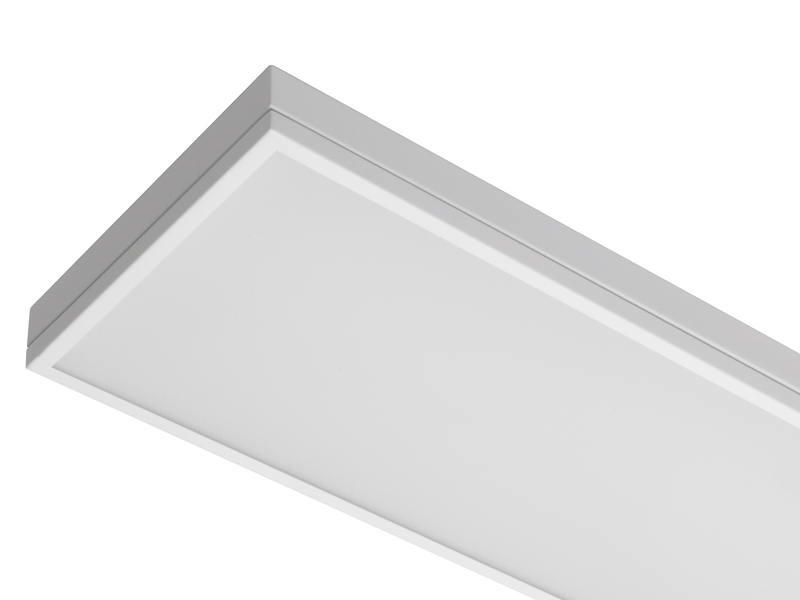

Luminaire housing and frame holding the optics are both made of 0,8mm sheet steel, powder coated in RAL9003 (white), RAL 9006 (grey) or RAL9005 (black). Corners of housing and frame are laser welded without any visible joints. Visible width of bottom frame only 12mm.

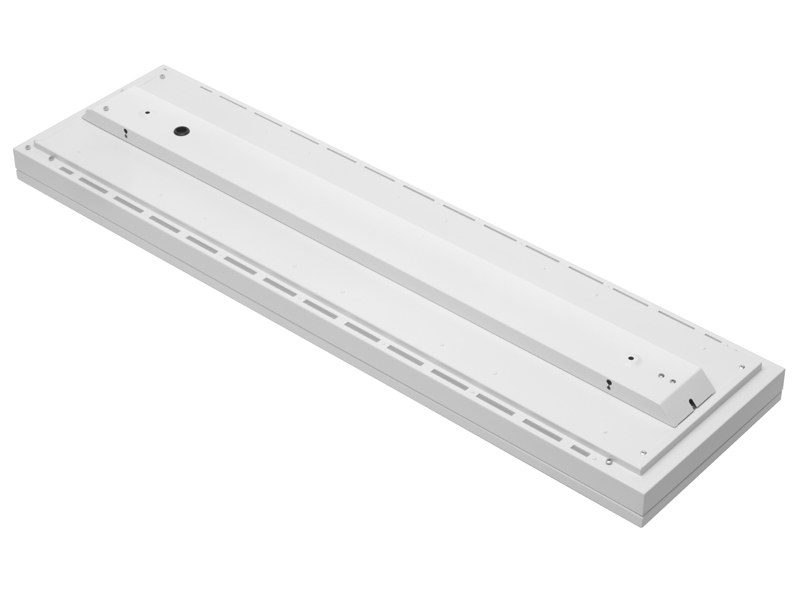

Luminaire designed for surface mounted installation is available in two lengths as pure direct, or direct/indirect version. Removable bottom frame attached to the housing with screws – possible future upgrade of LED technology.
| Lamp | LED |
| Cooling | PASSIVE |
| Class | I |
| Ingress protection | IP40 |
| Weight | 7.9-9.7kg |
INSTALLATION TYPE
• SUR – surface mounted LED luminaire
OPTICAL SYSTEM
• DMP – microprismatic diffuser with pyramidal structure, PMMA. Diffuser is completed with special light diffuse film
for even homogenous appearance of bottom part of the luminaire.
Third layer (on request) – cover layer made of antireflect plastic sheet. Makes bottom of the luminaire smooth and prevents
the accumulation of dust. Gleamless finish, no disturbing reflections. Very easy to clean.
ELECTRICAL EQUIPMENT
• LED modules fixed at the bottom of luminaire housing
• electronic LED driver
• terminal block with strain relief, max. 2,5mm2
OPTIONAL EQUIPMENT
• wiring with emergency unit (1 or 3h)
• wiring with dimmable electronic control gear (DSI, DALI)
• various colour finishing
• tunable white version (3000-6000K)
• high colour rendering index (CRI>90)
• 3-layer optical system
SPECIFICATION
| Type* | System power (W) | Equivalent | A/X (mm) | B (mm) | H (mm) | kg |
| SKY SUR 11 LED 3650lm | 36 | 2x28W T5 | 1110/850 | 300 | 93/53 | 7,9 |
| SKY SUR 11 LED 4330lm | 43 | 2x35W T5 | 1110/850 | 300 | 93/53 | 7,9 |
| SKY SUR 11 LED 5050lm | 51 | 2x49W T5 | 1110/850 | 300 | 93/53 | 7,9 |
| SKY SUR 14 LED 4560lm | 43 | 2x35W T5 | 1360/ 1100 | 300 | 93/53 | 9,7 |
| SKY SUR 14 LED 5400lm | 53 | 2x49W T5 | 1360/ 1100 | 300 | 93/53 | 9,7 |
| SKY SUR 14 LED 6310lm | 63 | 2x54W T5 | 1360/ 1100 | 300 | 93/53 | 9,7 |
*net lumen output of the luminaire by 4000K
| Code | Type |
| SKR11000LE03650 | SKY SUR 11 DIR LED 3650lm |
| SKR11001LE03650 | SKY SUR 11 DIR/INDIR LED 3650lm |
| SKR11000LE04330 | SKY SUR 11 DIR LED 4330lm |
| SKR11001LE04330 | SKY SUR 11 DIR/INDIR LED 4330lm |
| SKR11000LE05050 | SKY SUR 11 DIR LED 5050lm |
| SKR11001LE05050 | SKY SUR 11 DIR/INDIR LED 5050lm |
| SKR14000LE04560 | SKY SUR 14 DIR LED 4560lm |
| SKR14001LE04560 | SKY SUR 14 DIR/INDIR LED 4560lm |
| SKR14000LE05400 | SKY SUR 14 DIR LED 5400lm |
| SKR14001LE05400 | SKY SUR 14 DIR/INDIR LED 5400lm |
| SKR14000LE06310 | SKY SUR 14 DIR LED 6310lm |
| SKR14001LE06310 | SKY SUR 14 DIR/INDIR LED 6310lm |
| CCT | Optics | CRI | Control gear | Colour | Accessories | |||||
| Tunable White 3000K – 6000K | DMP | 80 | ECG | white | 3-layer optical system | |||||
| 3000K | DO | 90 | DALI | grey | M 1h | |||||
| 4000K | DSI | black | M 3h |
