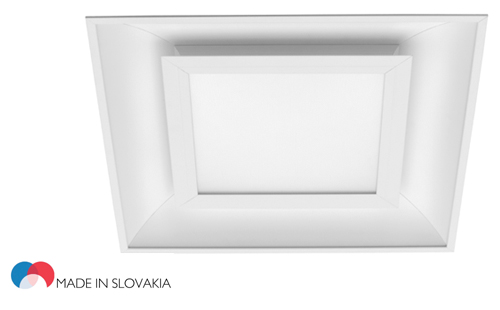

ORIGIN – EN

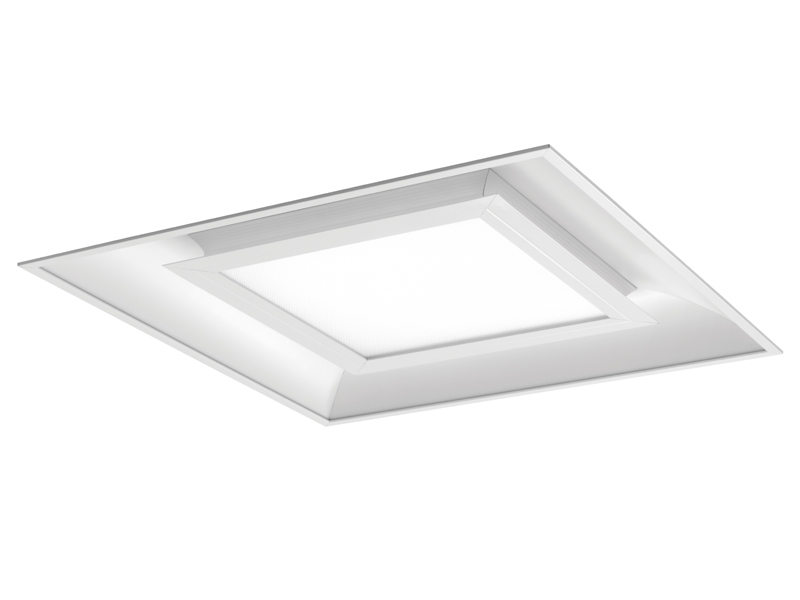

At first sight Origin differs from traditional look of interior luminaires for commercial areas and extend its application possibilities for different others interior places. In that manner Origin becomes easy choice for architects or interior designers, that expect from the luminaire something more than just perfect photometric characteristics.

The luminaire is primary designed for paralel lighting of both parts, but in standard execution allows to switch two circuits independently. Central part could be dimmable in two ways: whether with simple pushbutton (on/off/dim up/dim down) or with DALI protocol. Side parts could be dimmable on request as well.

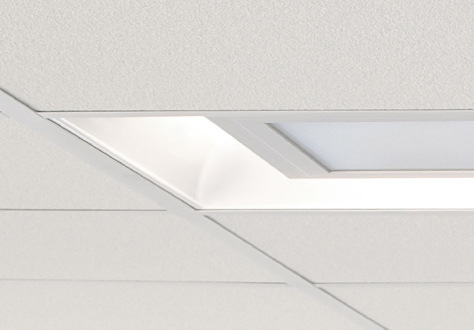

When the central part is switched off, illuminated side part could serve for relaxing atmposhere in the room, eventually for night security lighting. On request it is possible to use colour LEDs for illumination of side reflectors, whether in single colour or in RGB execution. This option extend application possibilities of luminaire as a tool for decorative or mood lighting.

Low energy consumption, high lumen output, perfect luminous flux distribution, non-glaring optical system, extremely long lifetime of light sources, dimming possibility, two colour temperatures, high colour rendering index, decorative RGB colour version, maintenance-free operation, low weight and many other advantages – it all combines into one unit luminaire with extraordinary design, Origin.

ENVIRO

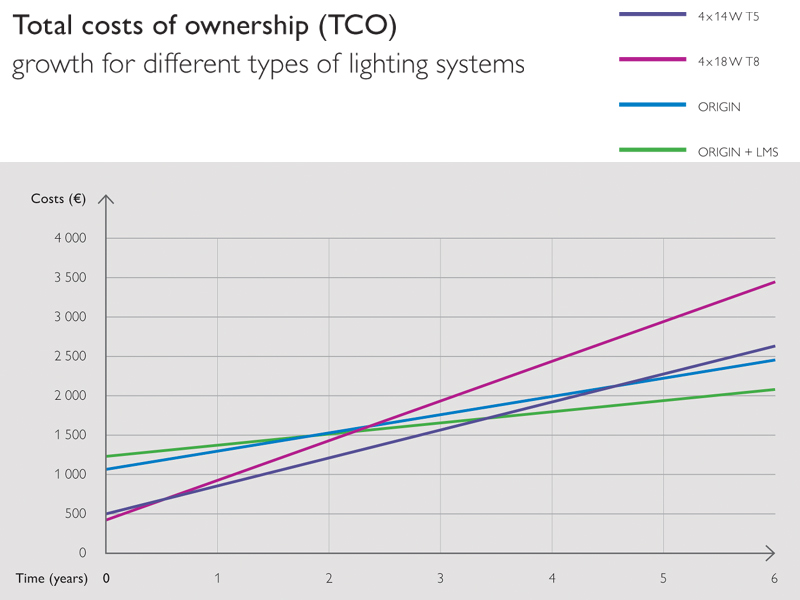

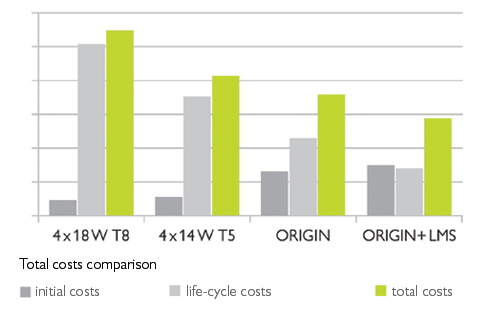

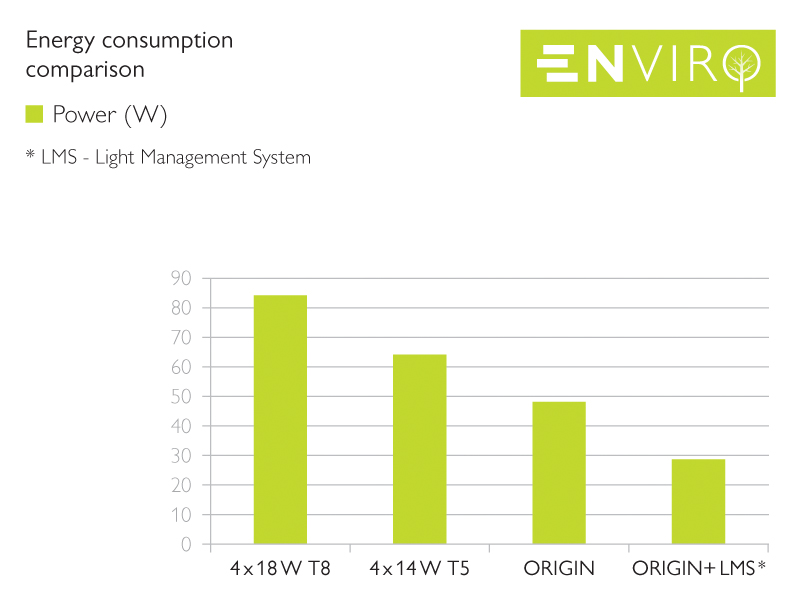

One of the most important parameter both for projectant and for single user of lighting installation is power consumption of the luminaire. Employed LED technology with its luminous efficiency totally beat mass-used linear fluorescent lamps. Origin therefore consumes markedly less electric power than fluorescent luminaires which were used up to now, of course by maintaining the same luminous flux output. The difference 36W* per single luminaire is clear indicator of Origin´s economical profitability. Although modern technology and used materials are reflected in higher initial price of the luminaire, much lower overall operating costs could reliably bring back the higher investment. On the top of this, it is necessary to put additional savings for lamps and their exchange, as Origin does not need any maintenance for its operation.

SILENT OPERATION
Operation of LED light sources is completely silent, Origin is therefore suitable even for the most silent areas. LEDs after turning on run up to their full luminous flux in milisecond, not even often switching on and off don´t have any negative influence to their operation and lifetime.

LOW WEIGHT

Thanks to used materials and modern technology, weight of the luminaire is only 4,5kg. This fact not only allows easy manipulation and simple installation of luminaire, but mainly it stress the ceiling construction minimally. Very compact shape of luminaire allows recessing even into extreme low false ceilings, height of the luminaire is only 80mm.

* In comparison with 4x18W luminaire and magnetic ballast

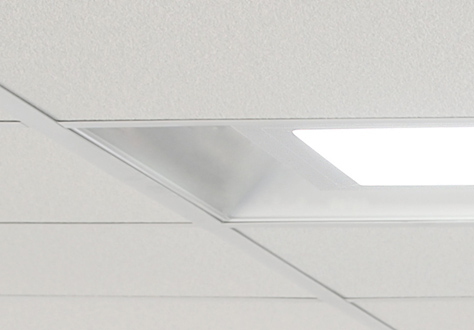

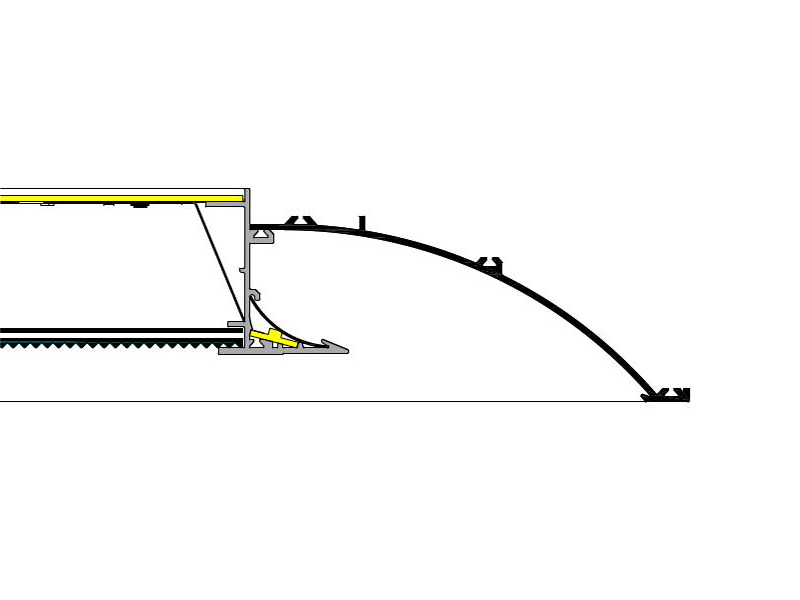

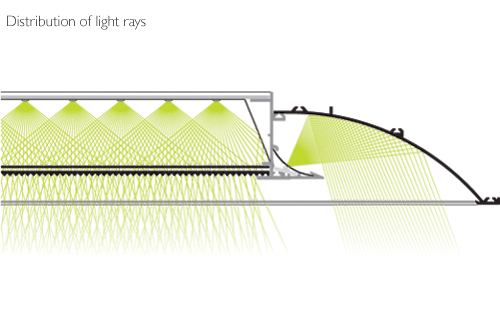

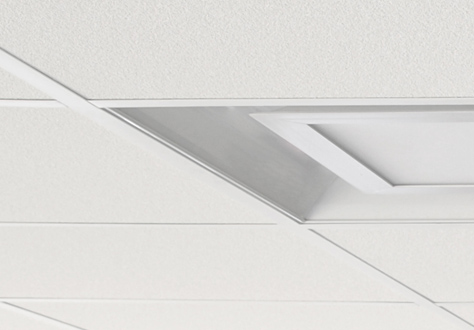

Special optical system provides high level of protection against glare, keeping very high optical efficiency at the same time. Extraordinary lighting characteristics of luminaire is created by two light-active parts – the main central part and the secondary side part, that forms the overall design of luminaire at the same time.

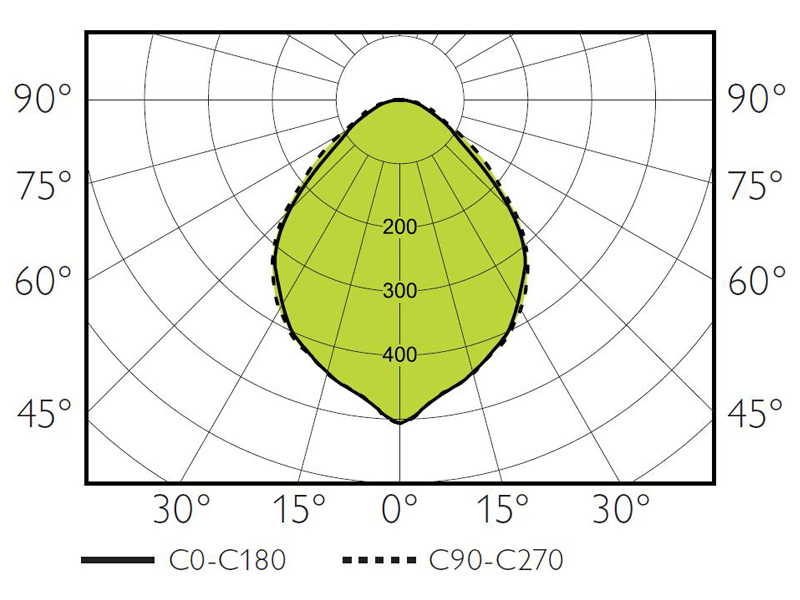

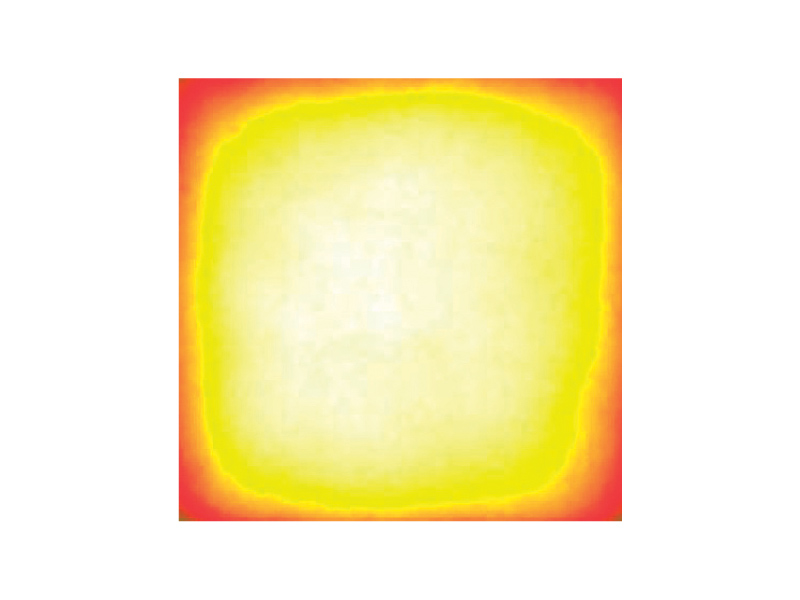

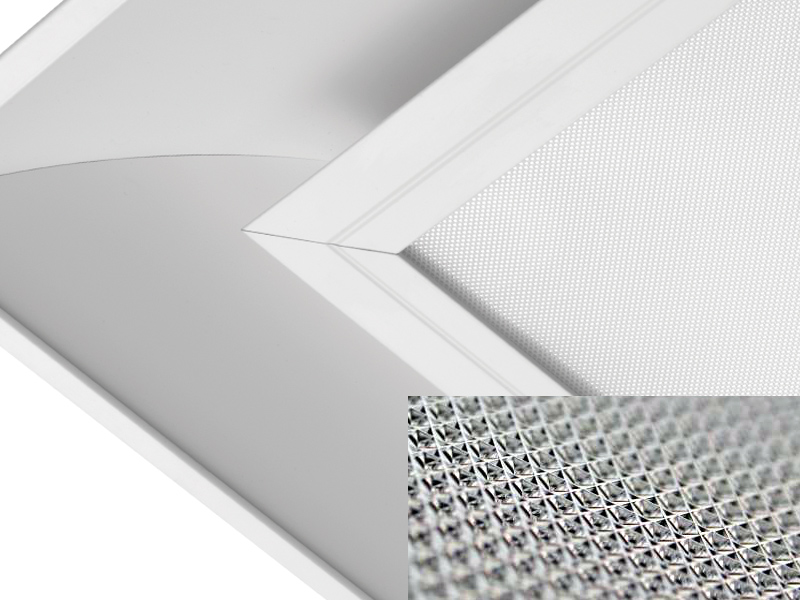

Microprismatic diffuser of central part has computer optimalized pyramidal structure, which accurately redirect luminous flux to requested direction. At the same time, diffuser prevents of unwanted glare above viewing angles defined by standard. Diffuser excel in high light transmission, together with perfect mixing capability of light radiated from single LEDs. The result is very homogeneously backlighted active part of the luminaire, without visible hot spots. Rotational symmetric light distribution curve with uniform emission of light to all directions allows random orientation of luminaire in space. This unique feature makes it possible to keep the flexibility in interior arrangement.

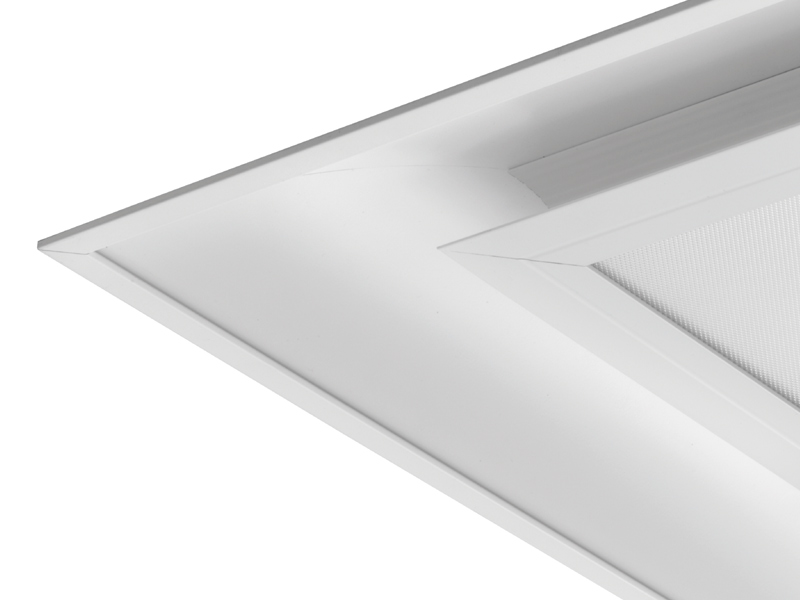

White painted side reflectors distribute the light out of the luminaire by the way of diffuse reflection. Increased portion of diffuse light decrease hard contrasts of things and allows better modelling of objects in the room.

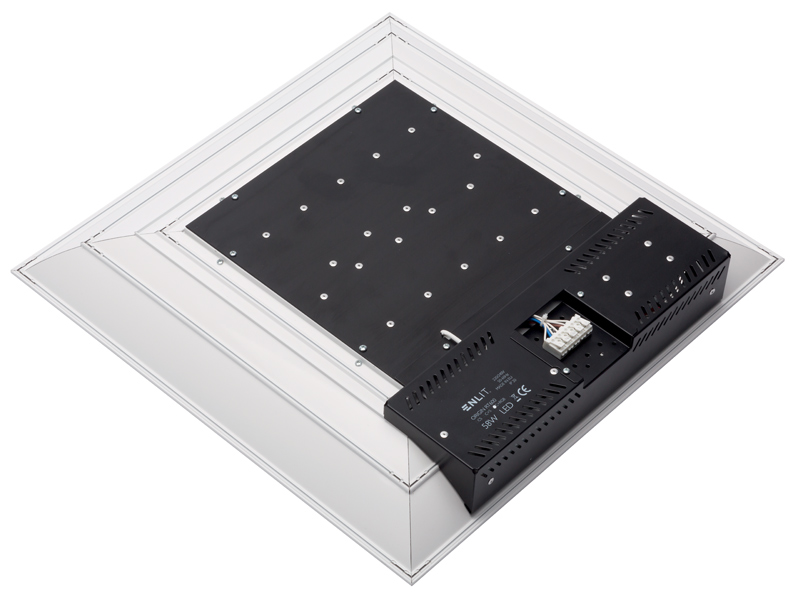

Light sources of central and side part are created by last generation LEDs with high luminous efficiency, that are placed on printed circuit boards and solidly fixed to the luminaire housing. Precise designed thermal management utilize single housing of luminaire as a massive heat sink, whereby keeping LEDs cooled optimally till ambient temperature +35 ^oC. These conditions ensure for LED technology optimum operating parameters, minimal luminous flux depreciation and guaranteed minimum lifetime 50.000 hours.

LED light sources are available in two colour temperatures: 3000K and 4000K. Both versions have colour rendering index more than 80, which secure excellent recognition of colours in illuminated space.

MATERIAL

luminaire housing made of aluminium profile, white powder coated finish (RAL9003), Eloxal coating on request. microprismatic diffuser: PMMA

OPTICAL SYSTEM

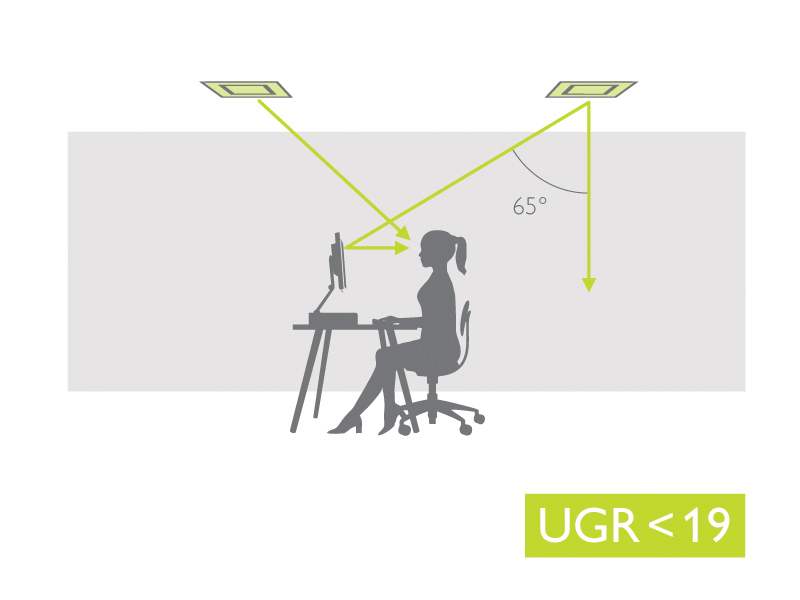

Central part: microprismatic diffuser with pyramid structure, PMMA Side part: white painted reflectors Direct light distribution. Suitable for VDU workstations: luminance of light emitting area is in accordance with EN 12464-1.

ELECTRICAL EQUIPMENT

Electronic control gear for LED light sources Two electronic control gears for LED light sources enables independent control of central part and side part. Both parts could be dimmable on request. 5-pole screwless terminal block with strain relief, max. 2,5mm2

APPLICATION AREAS

Central and side parts separately controllable

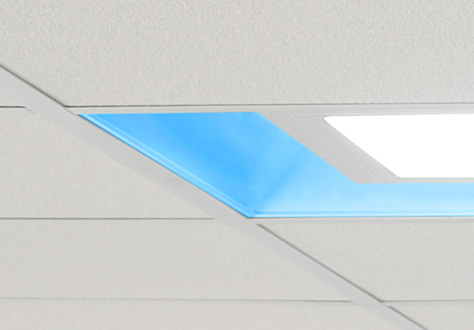

RGB colour version of luminaire side parts
Wiring with emergency unit (1 or 3h)
Wiring of side part with dimmable electronic control gear (DALI)
Fast electrical connector (Wieland)
Sensor Occuswitch
User interface ToBe Touched

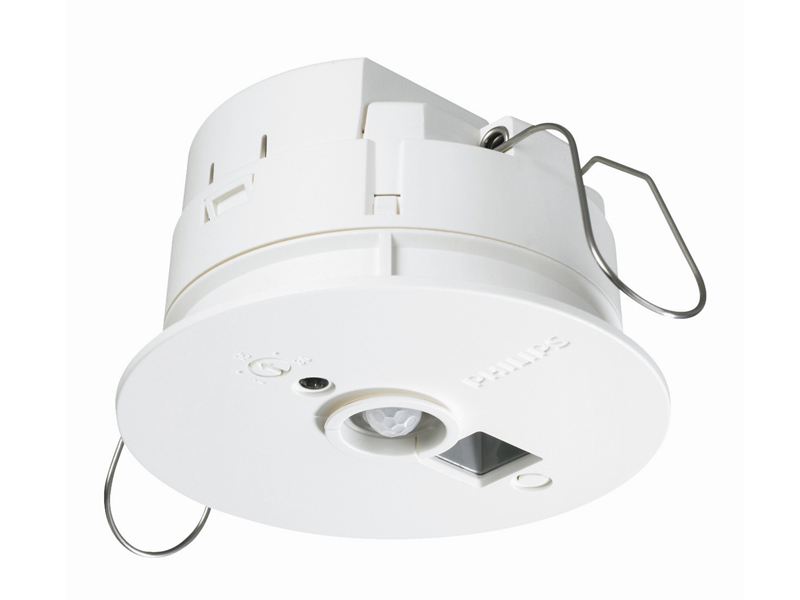

SENSOR
DALI sensor optimizes energy savings with intelligent occupancy and daylight controls. When the system detects appropriate levels of light, the luminaires will be dimmed or even switched off, saving up to 55%. It also dims lights in areas when they’re unoccupied.

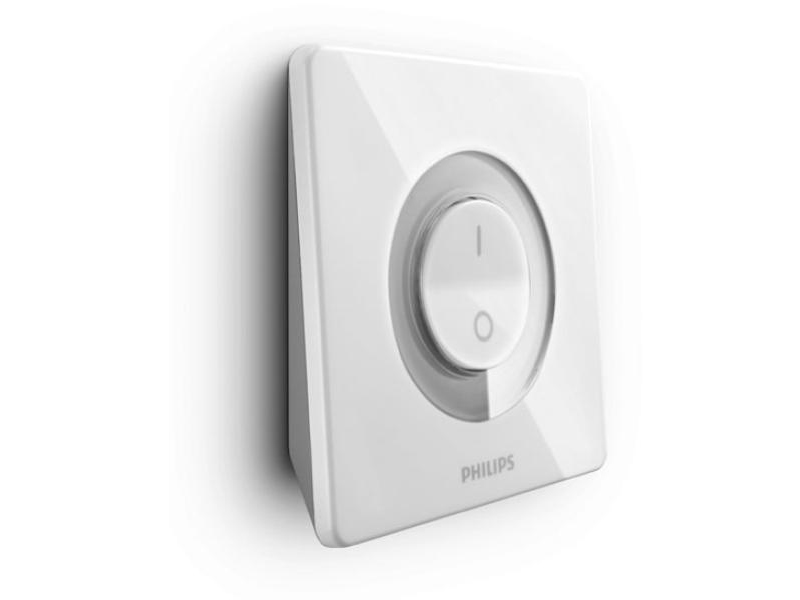

USER INTERFACE
Panel for intuitive control of light level. Direct access to a specific light level is provided via a touch-sensitive backlit intensity selection ring. By pressing the “on“ side of the button, the last used light level will be restored.

EMERGENCY LIGHTNING
Emergency lighting systems are essential in many buildings. The level of safety required is laid down in international and national legislation and guidelines.  When normal power fails, the emergency drivers immediately switch into emergency mode and support fixtures at reduced lumen output for a minimum of 60 minutes. When AC power is restored, the drivers return to their charging mode.
