ORB LED V3 – EN

ORB LED V3

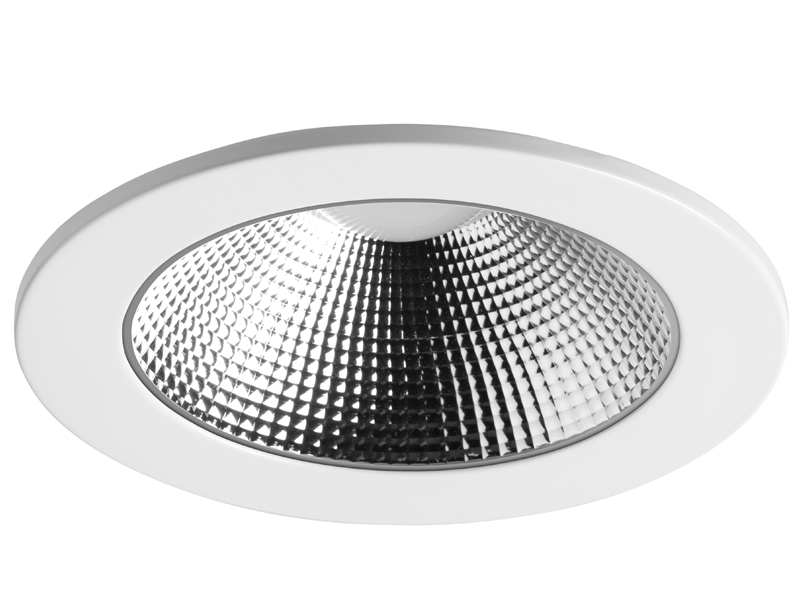

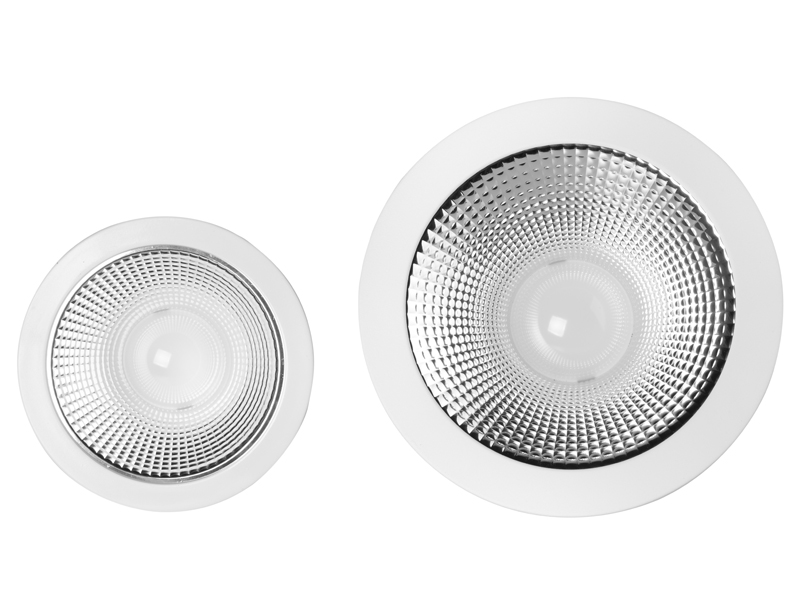

Downlight suitable for direct installation into various types of ceilings. The range consist of three diameters and three lumen outputs. High system efficacy up to 110 lm/W. Luminaire housing made of aluminium, finished with matt white powder coated colour. Bottom visible rim made of white plastic. Other colours on request.

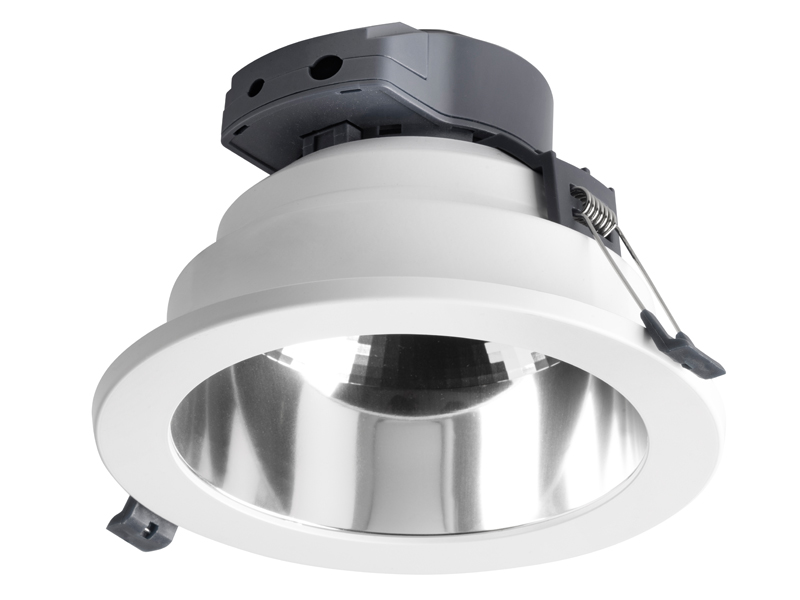

Two reflectors available with 60° and 90° beam angle. Medium 60° beam angle reflector for glare prevention is designed for applications with higher requirements for visual comfort, value UGR<19. Extremely quick and reliable fixation into ceilings of different thickness by strong steel springs. Nominal life-time 50,000 h (L70/B50). 5-year guarantee.

LampLED
CoolingPASSIVE
ClassI
Ingress protectionIP20/40
Weignt0,22-0,55kg

INSTALLATION TYPE
• R – luminaire recessed into various types of false ceilings


OPTICAL SYSTEM

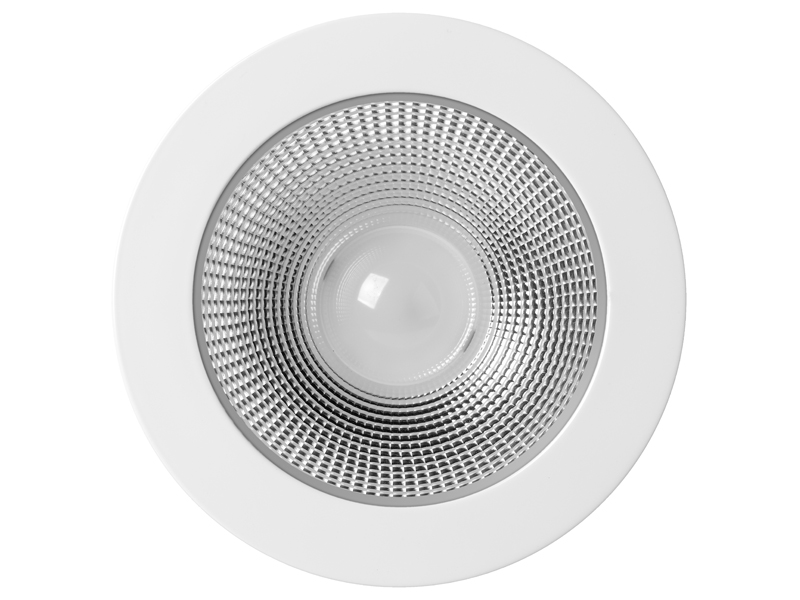

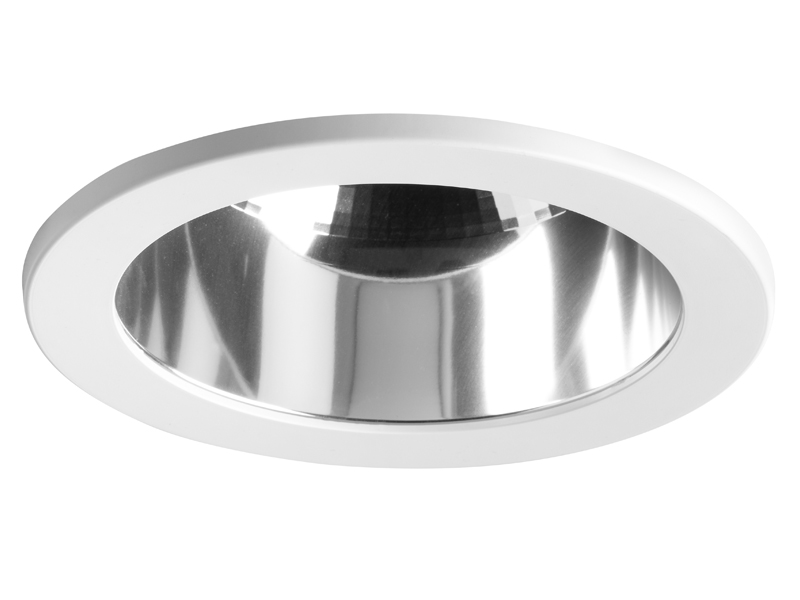

• RFS – facetted symmetric anti-glare reflector, available in 60° and 90° beam angle

ELECTRICAL EQUIPMENT

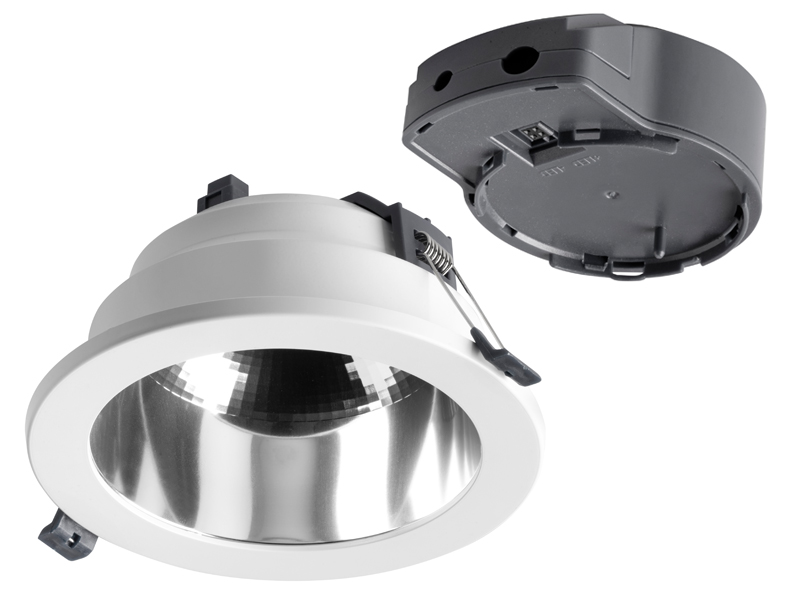

• removable electronic control gear for LED
• strain relief for cable safety

OPTIONAL EQUIPMENT
• wiring with emergency unit (1 or 3h)
• wiring with dimmable electronic control gear
• various colour finish of the rim

SPECIFICATION





TYPE* System power (W)EquivalentD/X (mm)H (mm)
ORB LED V3 1100lm 101x26W TC-DEL120/10090
ORB LED V3 2200lm 202x26W TC-DEL170/150120
ORB LED V3 3100lm 302x32W TC-TEL224/200140

*net lumen output of the luminaire by 4000K



CodeType
OL30R000LE01100ORB LED V3 1100lm
OL30R000LE02200ORB LED V3 2200lm
OL30R000LE03100ORB LED V3 3100lm



CCT Optics CRI Control gear Colour Accessories

4000K 60° 80 ECG
3000K 90°   DALI
