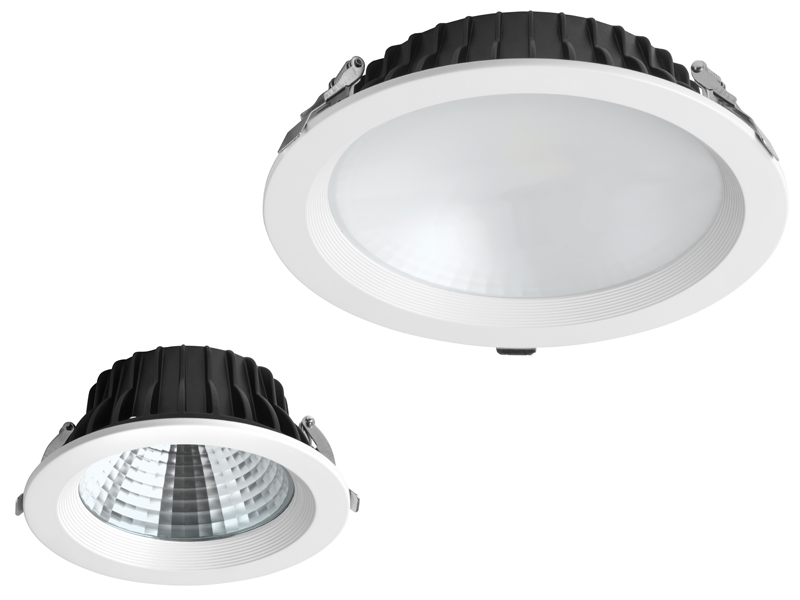

ORB LED V1

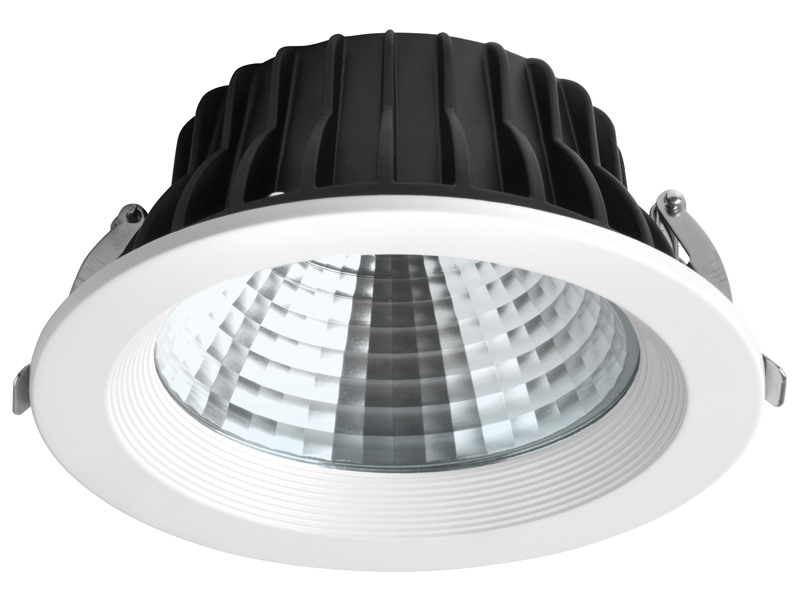

LED downlight suitable for direct installation into various types of ceilings. Luminaire housing made of die cast aluminium, epoxid powder coated. Driver on board technology for direct connection to mains voltage, high power factor >0.95. Internal aluminium reflector, covered with front glass. Colour of bottom rim: white RAL9003. Quick and reliable fixation into ceilings of different thickness by steel springs. ORB LED V1 is fully compatible with existing conventional downlight infrastructure, and is the perfect choice for both new and replacement markets.
Nominal life-time 50.000 h, 5 years guarantee, 3SDCM. Dimmable with common phase-cut dimmers. The compatibility of the downlights with the dimmer has to be confirmed prior to installation.
• R – luminaire recessed into various types of false ceilings such as plasterboard, ceiling tiles, wooden ceiling and similar

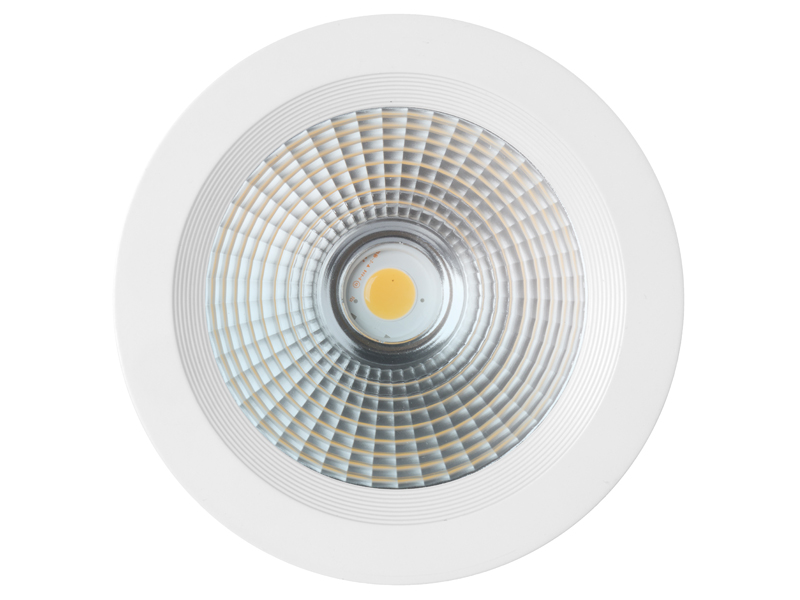

• C – clear glass

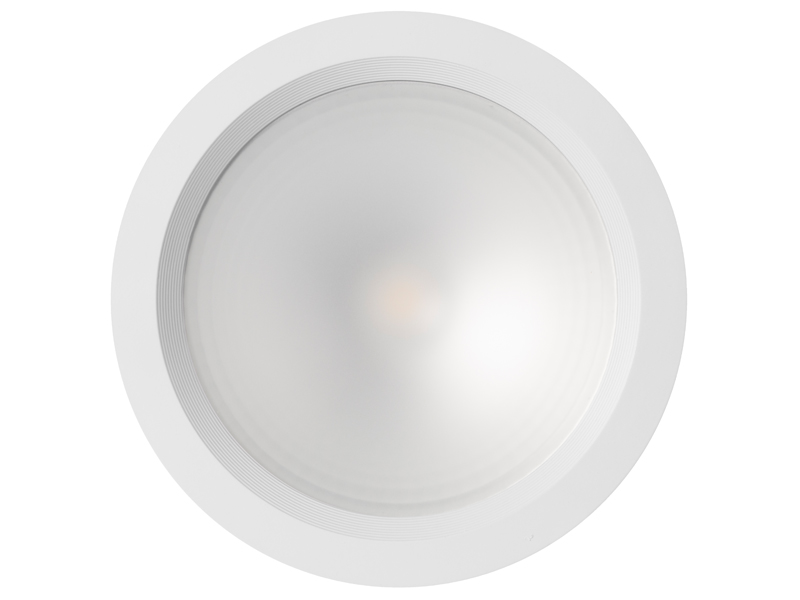

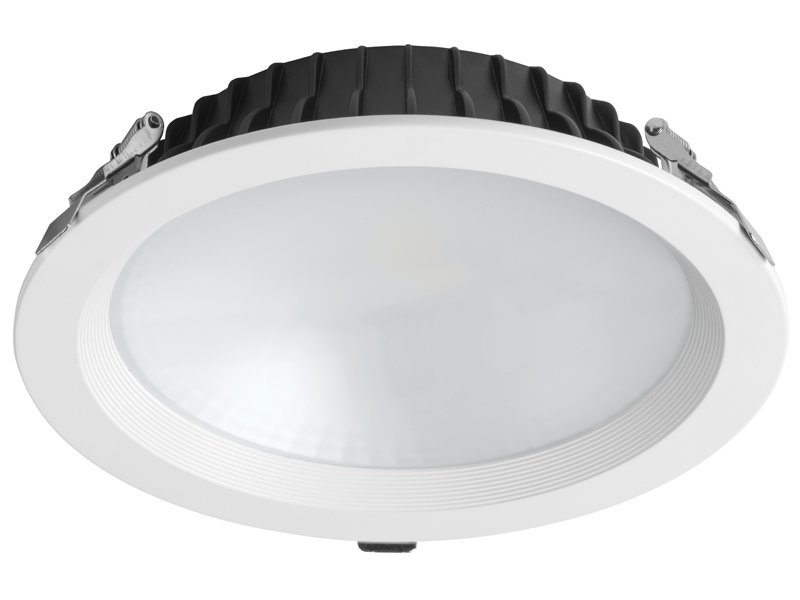

• D – diffuse (frosted glass)
• SD – semi diffuse (half frosted glass)
• direct connection to mains voltage

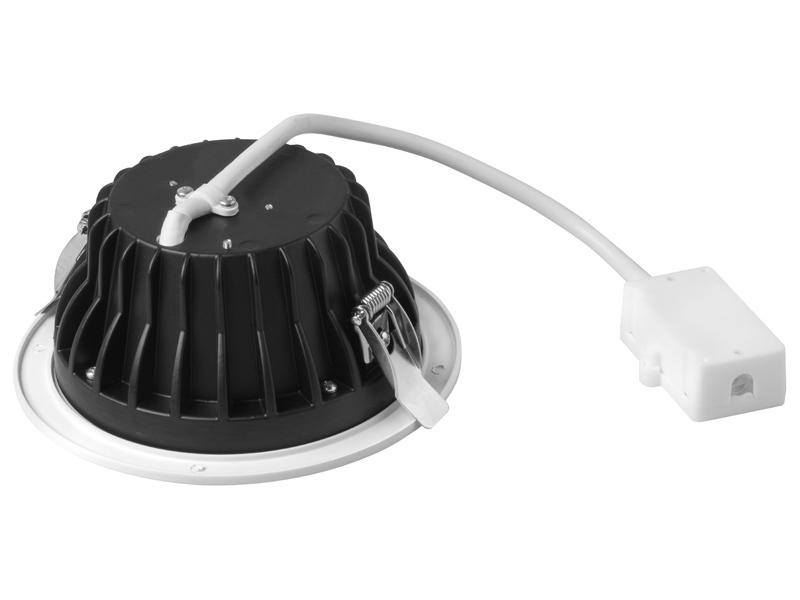

• supply cable with strain relief, finished with enclosed screw terminal block
|Type||System power (W)||Equivalent||D/X (mm)||H (mm)||kg|
|ORB LED V1 1400lm||15||1x26W TC-DEL||145/125||66||0,7|
|ORB LED V1 1600lm||20||1x32W TC-TEL||196/170||70||0,9|
|ORB LED V1 2600lm||30||2x26W TC-DEL||242/210||67||1|
|OL10R000LE01400||ORB LED V1 1400lm|
|OL10R000LE01600||ORB LED V1 1600lm|
|OL10R000LE02600||ORB LED V1 2600lm|
