ENLIT

INSTALLATION TYPE
• SUR – mounting on solid surfaces
• SUS – suspended luminaire

OPTICAL SYSTEM
• PSL (parabolic specular louvre) – polished, anodized aluminium, double parabolic louvre with glare prevention
• PML (parabolic matt louvre) – matt, anodized aluminium, double parabolic louvre
• louvre attached to the housing with fast-mounting springs

ELECTRICAL EQUIPMENT
• LED modules fixed at the bottom of luminaire housing
• electronic LED driver
• 3 or 5-pole screwless terminal block with strain relief, max. 2,5mm2
• cable opening entry completed with cable gland

OPTIONAL EQUIPMENT
• wired with emergency unit (1 or 3h)
• wired with dimmable electronic control gear (DIM 1-10V, DSI, DALI)
• various colour finishing

SPECIFICATION

Type*	System power (W)	Equivalent	A/X (mm)	B/Y (mm)	H (mm)	kg
BOXY LED 06 DIR 1100lm	10	1x14W T5	603/500	120/60	58	2,3
BOXY LED 12 DIR 2350lm	20	1x28W T5	1203/1100	120/60	58	3,1
BOXY LED 12 DIR 4275lm	36	1x54W T5	1203/1100	120/60	58	3,1
BOXY LED 15 DIR 2750lm	23	1x35W T5	1483/1400	120/60	58	3,8
BOXY LED 15 DIR 5300lm	45	1x80W T5	1483/1400	120/60	58	3,8

*net lumen uotput of the luminaire by 4000K

Code	Type
BE000000LE01100	BOXY LED 06 DIR 1100lm
BE000000LE02350	BOXY LED 12 DIR 2350lm
BE000000LE04275	BOXY LED 12 DIR 4275lm
BE100000LE02750	BOXY LED 15 DIR 2750lm
BE100000LE05300	BOXY LED 15 DIR 5300lm

CCT	Optics	CRI	Control gear	Colour	Accessories

4000K	PML	80	ECG	white
3000K	PSL	90	DIM 1-10V	black
6500K			DSI	grey
			DALI

BOXY LED

BOXY LED DIR

BOXY LED DIR/INDIR

Company

Vision
Enlit
Resources

PLANK ActiveAhead – EN

Martin Bilek — Thu, 12 Sep 2024 10:47:08 +0000

PLANK ActiveAhead

Suspended luminaire with high efficient LED modules, primary designed for energy efficient illumination of office areas. Optical system created by microprismatic diffuser provides pleasant diffuse lighting characteristics.
Luminaire housing made of 0,8mm sheet steel, white powder coated finish RAL9003 (white), RAL 9006 (grey), RAL9005 (black) as a standard. Luminaire is designed for suspended installation. PLANK DIR/INDIR could be optionally quipped with two independent drivers, thus enabling independent control of direct and indirect part of luminous flux distribution.

Lamp	LED
Cooling	PASSIVE
Class	I
Ingress protection	IP40
Weight	5,2kg

PLANK (2MB)

INSTALLATION TYPE
• SUS – suspended LED luminaire

OPTICAL SYSTEM
• DMP – microprismatic diffuser made of PMMA, semi-wide beam angle,
increased glare prevention from side view

ELECTRICAL EQUIPMENT
• 4xLED module fixed at the bottom of luminaire housing
• electronic LED driver
• terminal block with strain relief, max. 2,5mm2

OPTIONAL EQUIPMENT
• HNT 05 – adjustable Y suspensions (two fixing points)
• wiring with emergency unit (1 or 3h)
• wiring with dimmable electronic control gear (DSI, DALI)
• pullswitch
• various colour finishing

SPECIFICATION

Type*	System power (W)	Equivalent	A/X (mm)	B (mm)	H (mm)	kg
PLANK DIR LED 4500lm	38	2x28W T5	1490/1160	200	50/36	5,2
PLANK DIR TW LED 4100lm	41	2x28W T5	1490/1160	200	50/36	5,2
PLANK DIR/INDIR LED 5300lm	43	2x28W T5	1490/1160	200	50/36	5,2
PLANK DIR/INDIR 2C LED 3150+2300lm	43	2x28W T5	1490/1160	200	50/36	5,4
PLANK DIR/INDIR TW LED 4100lm	41	2x28W T5	1490/1160	200	50/36	5,2

*net lumen output of the luminaire by 4000K
2C – two circuits, separate control of DIR and INDIR part

Code	Type
PL00SUS0LE04500	PLANK DIR LED 4500lm
PL10SUS0LE05300	PLANK DIR/INDIR LED 5300lm
PL12SUS0LE05450	PLANK DIR/INDIR 2C LED 3150+2300lm
PL01SUS0LE04100	PLANK DIR TW LED 4100lm
PL11SUS0LE04100	PLANK DIR/INDIR TW LED 4100lm

CCT	Optics	CRI	Control gear	Colour	Accessories

3000K	DMP	80	ECG	white	HNT 05
4000K		90	DALI	grey	M 3h
Tunable White 2700K – 6500K				black	pullswitch

PLANK

Company

Vision
Enlit
Resources

Services

Download

Product Sheets
Company presentations

Contact

The post PLANK ActiveAhead – EN appeared first on ENLIT.

VECTOR ActiveAhead – EN

Martin Bilek — Thu, 12 Sep 2024 10:01:47 +0000

VECTOR ActiveAhead

Slim LED luminaire with direct or direct/indirect light distribution, designed for simplicity and flexibility. Could be mounted as an individual unit or into continuous lines. Opal diffuser with high light transmission, nice diffuse light characteristics, or microprismatic diffuser.
Luminaire housing made of extruded aluminium profiles, completed with aluminium end caps, screwless on request. Eloxed high quality finish. Luminaire is designed for suspended or surface mounted installation.

Lamp	LED
Cooling	PASSIVE
Class	I
Ingress protection	IP20
Weight	3,2-4,4kg

VECTOR en (2,6MB)

INSTALLATION TYPE
• SUR – mounting on solid surfaces
• SUS – suspended luminaire
• WL – wall mounted luminaire

OPTICAL SYSTEM
• DO – opal diffuser made of PC
• DMP – microprismatic diffuser made of PC in combination with primary lenses (mounted directly on LED chips)

ELECTRICAL EQUIPMENT
• LED modules fixed on internal aluminium mounting plate
• electronic LED driver
• 3 or 5-pole screwless terminal block with strain relief, max. 2,5mm2
• cable opening entry completed with cable gland

OPTIONAL EQUIPMENT
• wired with emergency unit (1 or 3h)
• wired with dimmable electronic control gear (DSI, DALI)
• white/black colour finish
• continuous mounting
• corner joints
• suspensions
• brackets for wall and surface mounted installation
• transparent supply cable 3 or 5 x1,5mm2

SPECIFICATION

Type*	System power (W)	A/X (mm)	B (mm)	H (mm)	kg
VECTOR 60 DIR DO 3010lm	31	1126/900	61	93	3,2
VECTOR 60 DIR DO 3620lm	37	1406/1180	61	93	3,9
VECTOR 60 DIR/INDIR DO 4820lm	46	1126/900	61	93	3,7
VECTOR 60 DIR/INDIR DO 5430lm	52	1406/1180	61	93	4,4

VECTOR 60 DIR DMP 3300lm	31	1126/900	61	93	3,2
VECTOR 60 DIR DMP 4000lm	37	1406/1180	61	93	3,9
VECTOR 60 DIR/INDIR DMP 5120lm	46	1126/900	61	93	3,7
VECTOR 60 DIR/INDIR DMP 5820lm	52	1406/1180	61	93	4,4

^{*net lumen output of the luminaire by 4000K}

Code	Type
VE6D0000LE03100	VECTOR 60 DIR DO 3010lm
VE6D0000LE03620	VECTOR 60 DIR DO 3620lm
VE6DI000LE04820	VECTOR 60 DIR/INDIR DO 4820lm
VE6DI000LE05430	VECTOR 60 DIR/INDIR DO 5430lm
VE6D0100LE03300	VECTOR 60 DIR DMP 3300lm
VE6D0100LE04000	VECTOR 60 DIR DMP 4000lm
VE6DI100LE05120	VECTOR 60 DIR/INDIR DMP 5120lm
VE6DI100LE05820	VECTOR 60 DIR/INDIR DMP 5820lm

Farba svetla	Optika	CRI	Predradník	Farba	Príslušenstvo

4000K	DO	80	ECG	prírodný elox	M1h
2750K	DMP	90	DSI	biela	M3h
3000K			DALI	čierna
5000K
6500K

VECTOR 60

Company

Vision
Enlit
Resources

Services

Download

Product Sheets
Company presentations

Contact

The post VECTOR ActiveAhead – EN appeared first on ENLIT.

SPARTAN ActiveAhead – EN

Martin Bilek — Thu, 12 Sep 2024 09:44:32 +0000

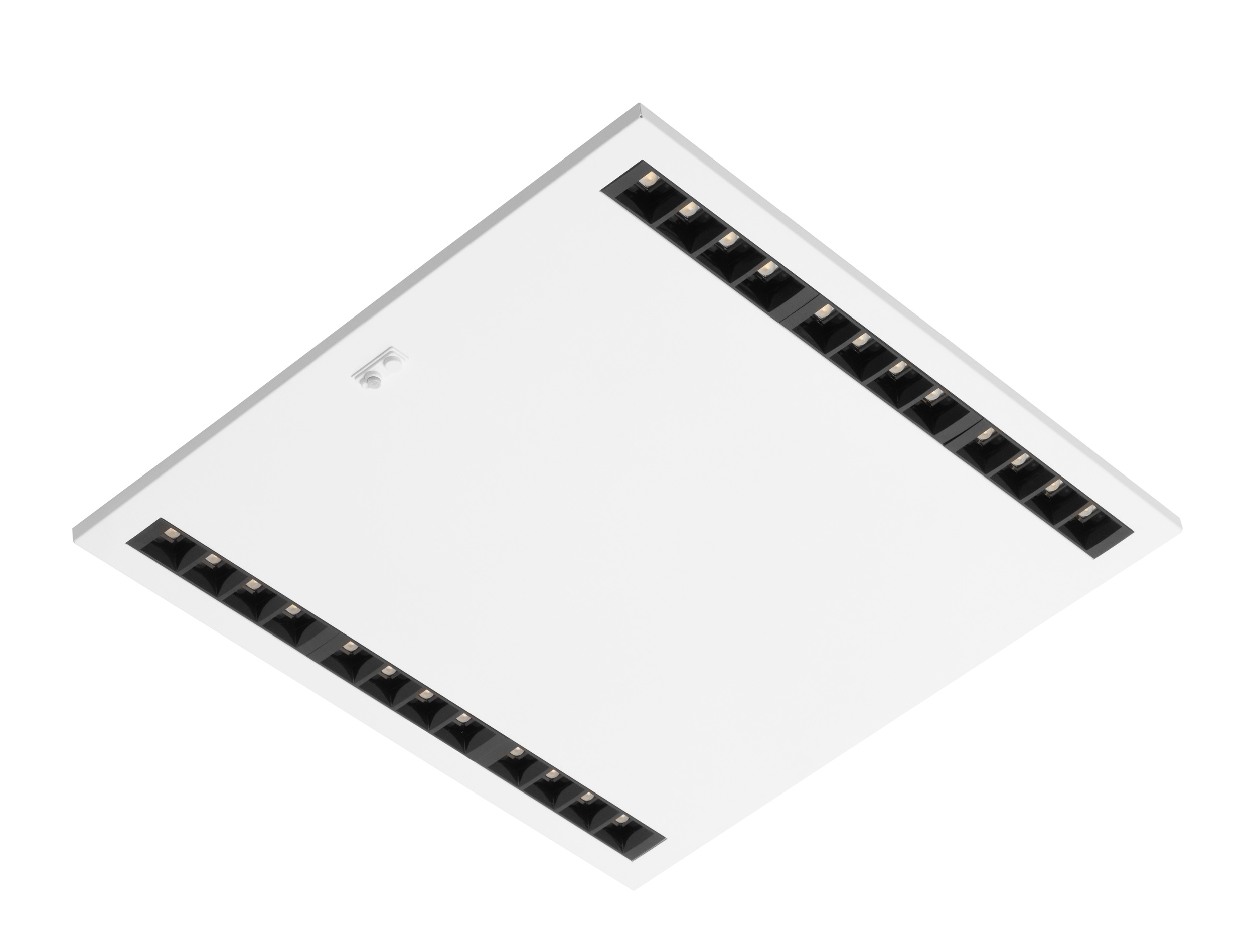

SPARTAN ActiveAhead

Recessed solution for premium class office lighting with high-efficient LED modules, dedicated for installation into T-bar ceilings, plasterboard ceilings or any other type of false ceilings.
Luminaire housing made of 0,6mm sheet steel, white powder coated finish (RAL9003). Upper part of the luminaire made of aluminium plate, that serves as passive heat sink for employed LED modules. Increased protection of the optical part against dirt (IP40). Dark Light concept with UGR <16.

Lamp	LED
Cooling	PASSIVE
Class	I
Ingress protection	IP20
Weight	3kg

SPARTAN EVO (1,3MB)

INSTALLATION TYPE
• RT600 – recessed luminaire, ceiling with exposed grids, module size 600×600
• RT625 – recessed luminaire, ceiling with exposed grids, module size 625×625
• R – recessed luminaire, plasterboard ceiling

OPTICAL SYSTEM
Discreet low glare solution combines square reflector elements and internal lenses for glare-free light. Optical system is made of PC/ABS, available in piano black or white finish. Internal lenses made of PMMA. Suitable for VDU workstations: luminance of light emitting area is in accordance with EN 12464-1.
• BL – black
• WH – white

ELECTRICAL EQUIPMENT
• linear LED modules fixed inside aluminium housing
• integrated electronic LED driver
• terminal block with strain relief, max. 2,5mm2

OPTIONAL EQUIPMENT
• wiring with emergency unit (1 or 3h)
• wiring with dimmable electronic control gear (DSI, DALI)
• various colour finishing
• fast connectors (Wieland, Wago, Isodom)

SPECIFICATION

Type	System power (W)	Equivalent	A (mm)	B (mm)	H (mm)	kg
SPARTAN EVO RT600 LED 3730lm	31	4x14W T5	595	595	24	3
SPARTAN EVO RT600 LED 4320lm	36	2x28W T5	1195	295	24	3

^{*net lumen output of the luminaire by 4000K}

Code	Type
ST20RT60LE03730	SPARTAN EVO RT600 LED 3730lm
ST20RT60LE04320	SPARTAN EVO RT600 LED 4320lm

CCT	Optics	CRI	Control gear	Colour	Accessories

3000K	BL	80	ECG		M 3h
4000K	WH	90	DALI		M 1h
	AL		DIM 1-10V

SPARTAN

Company

Vision
Enlit
Resources

Services

Download

Product Sheets
Company presentations

Contact

The post SPARTAN ActiveAhead – EN appeared first on ENLIT.

FOCUS_EN

enlit_admin — Tue, 14 Mar 2023 16:29:16 +0000

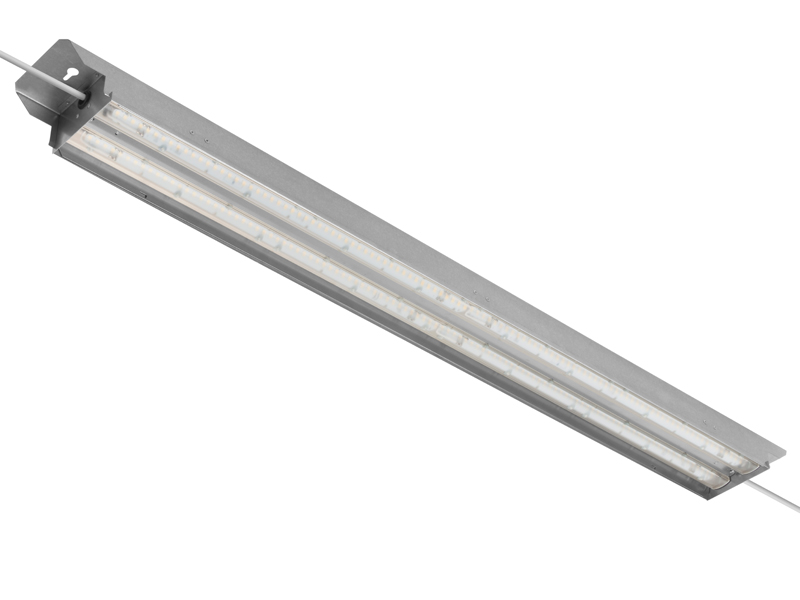

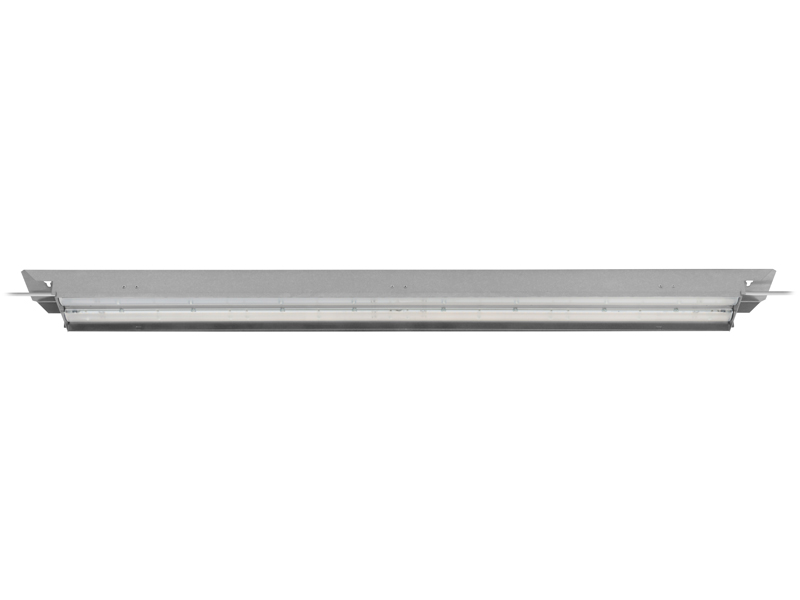

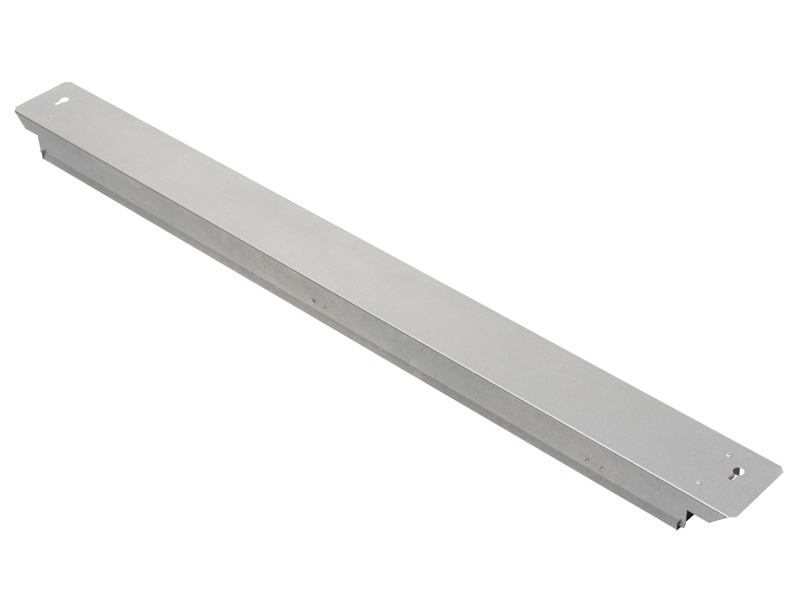

FOCUS

Industrial luminaire with functional design, designed to provide general illumination in wide range of interior and industrial applications. equipped with last generation of linear LeD modules covered with plastic lenses. Definable lumen packages and 6 different lighting characteristics for applications with various heights. Housing made of aluzinc, without surface treatment. Internal aluminium mounting plate for better thermal management of LeD modules. Luminaire is designed for mounting on solid surface, cable tray, or for suspended installation via rods, chain or wires.

Lamp	LED
Cooling	PASSIVE
Class	I
Ingress protection	IP23
Weight	3,2kg

FOCUS en (1,5MB)

INSTALLATION TYPE
• SUR – surface mounted installation
• SUS – suspended installation
• CAN – canalis installation
• installation into another ceiling types on request

OPTICAL SYSTEM
• LEN – plastic lenses available in different beam angles:
40°, 60°, 90°, batwing, asymmetric and double asymmetric

ELECTRICAL EQUIPMENT

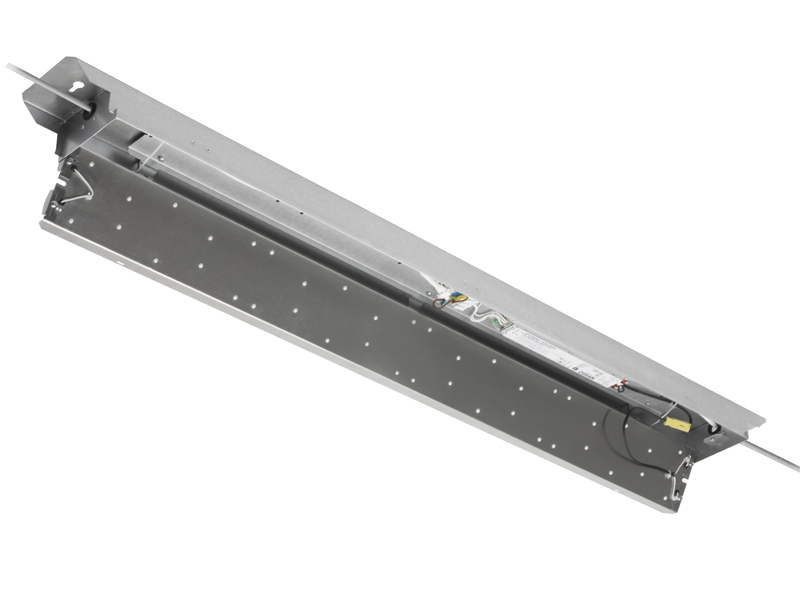

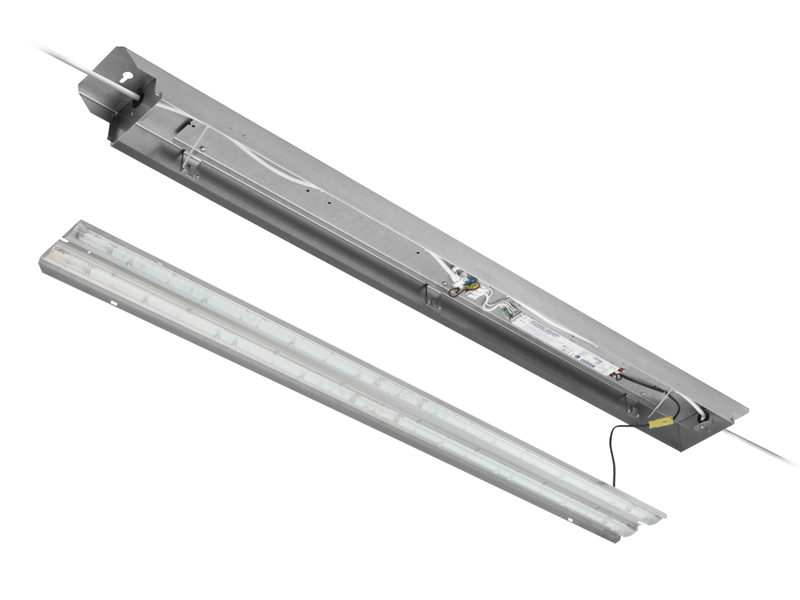

• linear LED module fixed on aluminium mounting plate
• industrial electronic LED driver with 5year warranty, extended temperature range
• 3-pole screwless terminal block, max. 2,5mm2
• through wiring possibility

OPTIONAL EQUIPMENT
• wiring with emergency unit (1 or 3h)
• wiring with dimmable electronic control gear
• integrated through wiring 5×2,5mm2 – connectors on the begin and end
• suspensions
• reflector accessory

SPECIFICATION

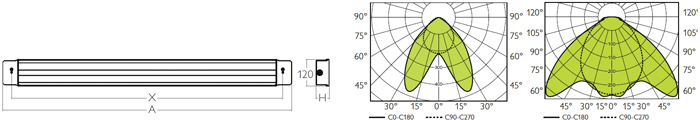

Type	System power (W)	Equivalent	A (mm)	X (mm)	H (mm)	kg
FOCUS LED 7900lm	55	2x49W T5	1300	1220	59	3,2
FOCUS LED 12500lm	91	3x49W T5	1300	1220	59	3,2

*net lumen output of the luminaire by 4000K

Code	Type
FO00SUR0LE07900	FOCUS LED 7900lm
FO00SUR0LE12500	FOCUS LED 12500lm

CCT	Optics	CRI	Control gear	Colour	Accessories

3000K	40°	80	ECG		M3h
4000K	60°		DSI		M1h
5000K	90°		DALI
	batwing
	asymmetric
	double asymm

FOCUS

Company

Vision
Enlit
Resources

Services

Download

Product Sheets
Company presentations

Contact

The post FOCUS_EN appeared first on ENLIT.

THOR_EN

enlit_admin — Tue, 14 Mar 2023 08:03:31 +0000

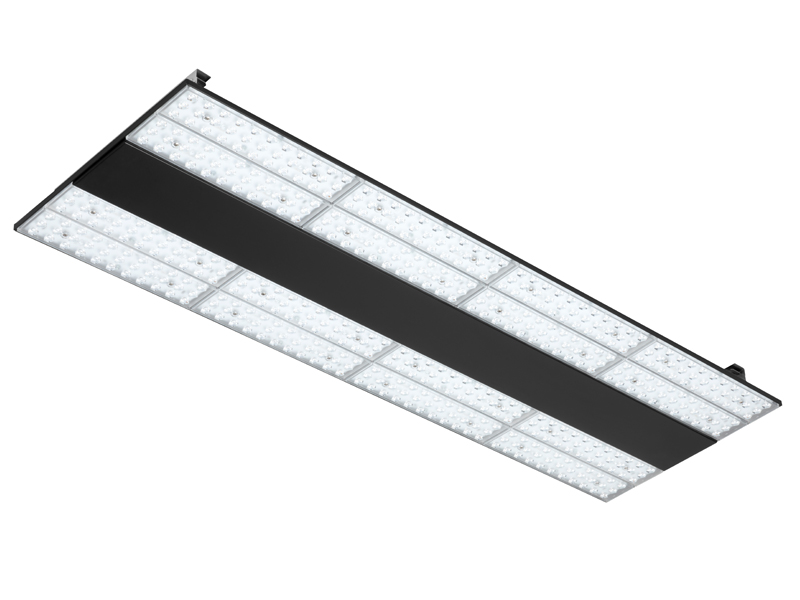

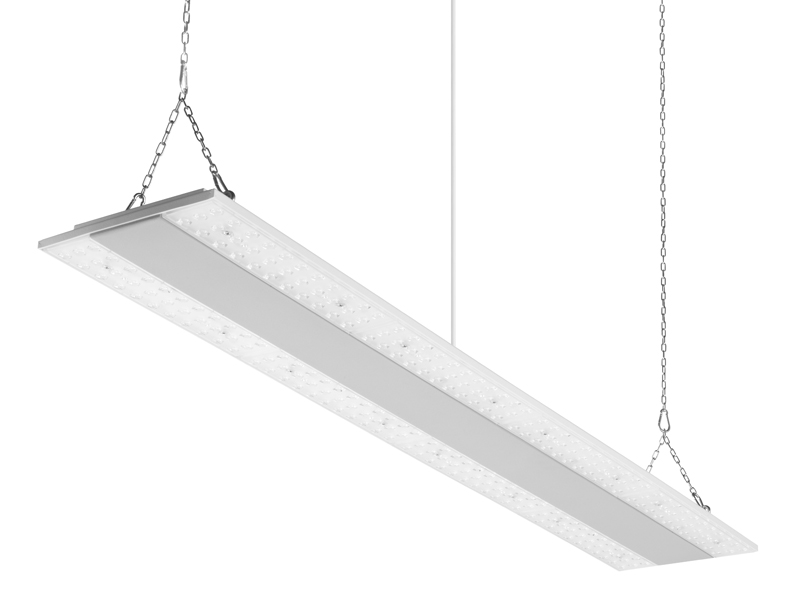

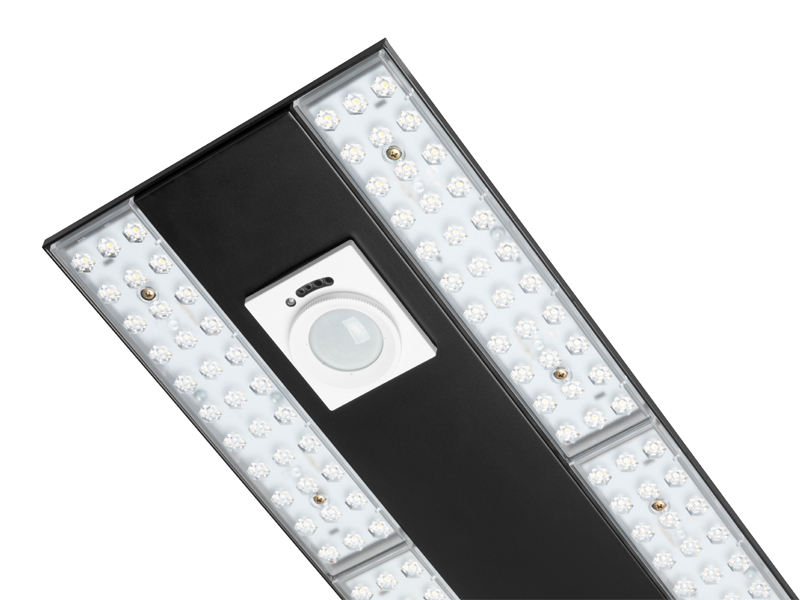

THOR

Industrial LED luminaire with direct light distribution and four lighting characteristics. Slim profile of the housing for unobtrusive design. Luminaire housing made of 0,6mm sheet steel, black powder coated finish (RAL9005). LED modules mounted on 2mm massive aluminium tray for optimum thermal management and long life time. Flat bottom of the housing designed without cooling fins prevents dust collection and simplify the maintenance. Internal electronics with expanded temperature range. Up to 143 luminaire lumens per circuit watt. Smart version with integrated sensor suitable for use at mounting heights up to 16m. Each LED board has an individual lens arrangement ensuring the most efficient distribution of light from LED chips.

Lamp	LED
Cooling	PASSIVE
Class	I
Ingress protection	IP54
Weight	6,3-11,2kg

THOR en (1,5MB)

INSTALLATION TYPE

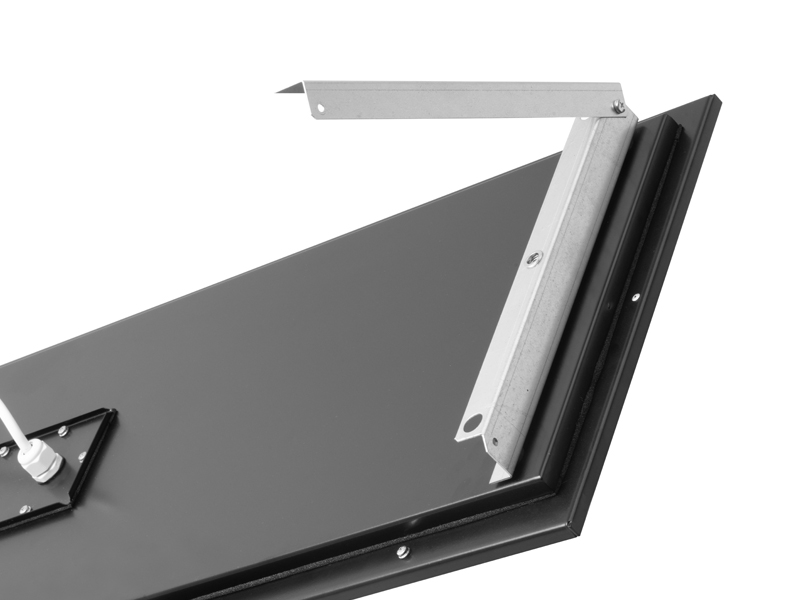

• SUR – surface mounting
• trunking mounting

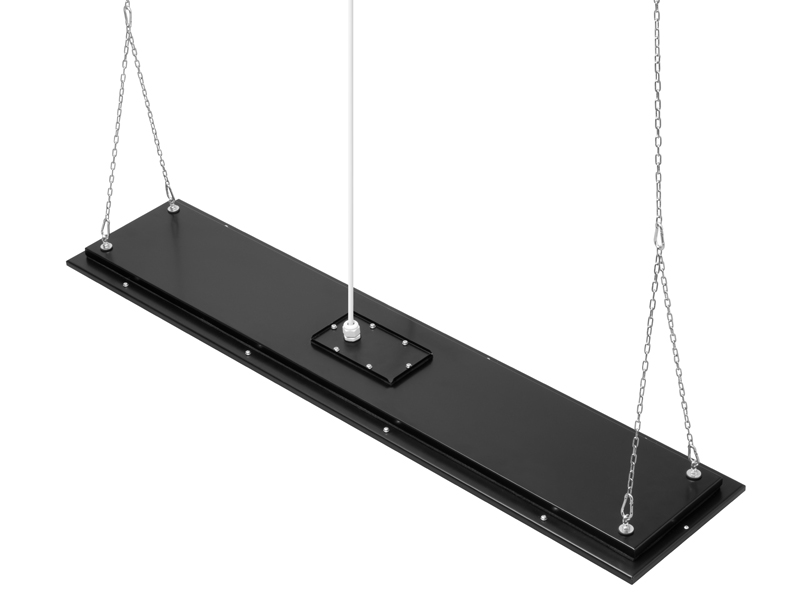

• chain / wire suspension

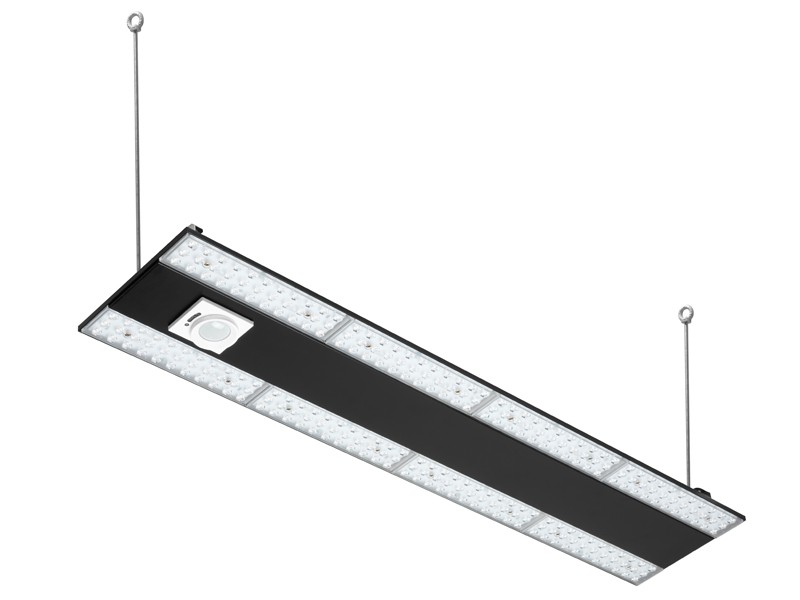

• rod suspension

OPTICAL SYSTEM
The Thor lenses are available in four beam angles, tailoring the light distribution to specific installation types
(open space high, open space low or high racks). Lenses made of PMMA, highly efficient (95%).
• LW90 – Symmetrical Wide 90° beam angle (diffuse)
• LW60 – Symmetrical Wide 60°
• LN – narrow high rack light distribution 40° x 80°
• LD – diffuse light distribution

ELECTRICAL EQUIPMENT
• last generation linear LED modules installed on ventilated aluminium bottom
• electronic LED drivers with overtemperature protection and expanded temperature range
• 3 or 5-pole screwless terminal block, max. 2,5mm2
• cable opening entry completed with cable gland

OPTIONAL EQUIPMENT
• wired with emergency unit (1 or 3h)
• wired with dimmable electronic control gear (DIM 1-10V, DSI, DALI)
• wieland electrical connectors (3P/5P)
• chain / wire suspension kit (4 x M6 screw eyelets)

SPECIFICATION

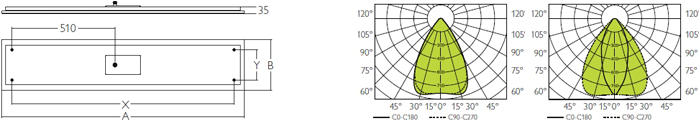

Type	System power (W)	A/X (mm)	B/Y (mm)	kg
THOR 250 LED 20600lm	150	1203/1100	254/150	6,3
THOR 380 LED 34500lm	240	1203/1100	384/280	11,2

*net lumen output of the luminaire by 4000K

Code	Type
TH00SUR0LE20600	THOR 250 LED 20600lm
TH10SUR0LE34500	THOR 380 LED 34500lm

CCT	Optics	CRI	Control gear	Colour	Accessories

3000K	LW90	80	ECG	black	M3h
4000K	LW60		DSI	white	M1h
5000K	LN		DALI
6000K	LD		DIM 1-10V

THOR

Company

Vision
Enlit
Resources

Services

Download

Product Sheets
Company presentations

Contact

The post THOR_EN appeared first on ENLIT.

THOR – EN

enlit_admin — Tue, 14 Mar 2023 07:59:25 +0000

THOR

Mass power for industrial applications

High efficient high bay luminaire, with wide range of light output options and light distributions. Taking advantage of the latest LED technology, Thor combines great system efficiency (143 luminaire lumens per circuit watt) with a slim profile. Suitable for various applications with increased degree of ingress protection, like industrial/production hall lighting or lighting of warehouses.
Flexible light distribution by four different optics with silicone sealant.

Products

" data-indicator-icon="" data-dropdown-indicator-icon="" class="eael-simple-menu-container eael-simple-menu--loading eael-simple-menu-align-left eael-simple-menu-dropdown-align-left preset-1" data-hamburger-breakpoints="{"mobile":"Mobile Portrait (> 300px)","tablet":"Tablet Portrait (> 770px)","desktop":"Desktop (> 2400px)","none":"None"}" data-hamburger-device="tablet">

Company

Vision
Enlit
Resources

Services

Download

Product Sheets
Company presentations

Contact

The post THOR – EN appeared first on ENLIT.

FOCUS – EN

enlit_admin — Mon, 13 Mar 2023 15:42:16 +0000

FOCUS

Products

Company

Vision
Enlit
Resources

Services

Download

Product Sheets
Company presentations

Contact

The post FOCUS – EN appeared first on ENLIT.

SPORT LED SUR – EN

enlit_admin — Mon, 13 Mar 2023 14:35:32 +0000

SPORT LED SUR

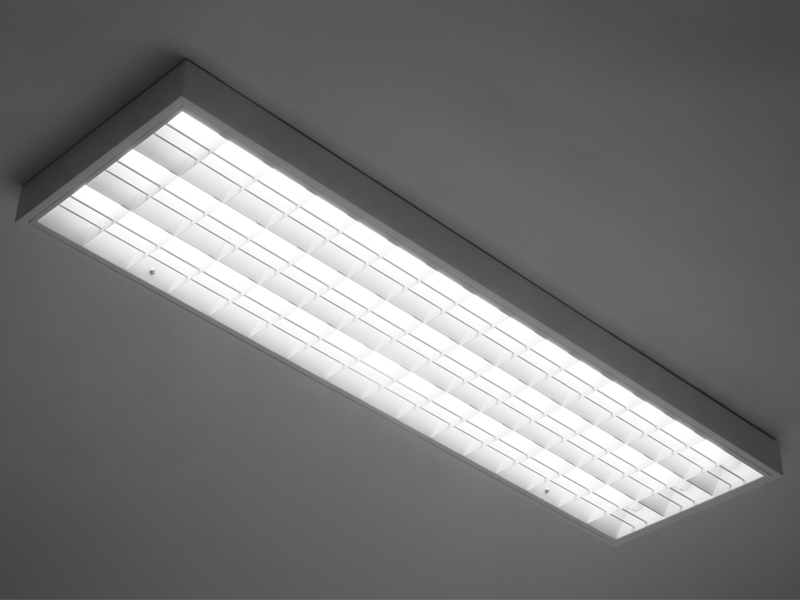

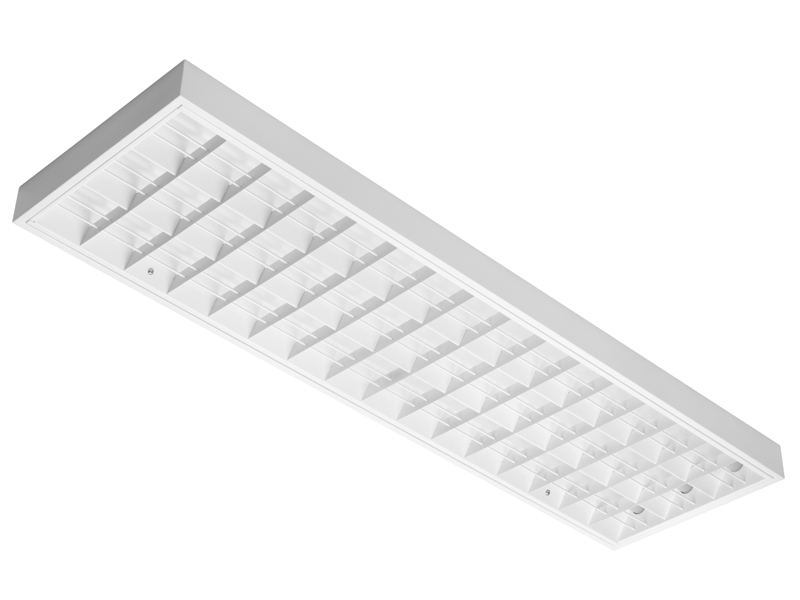

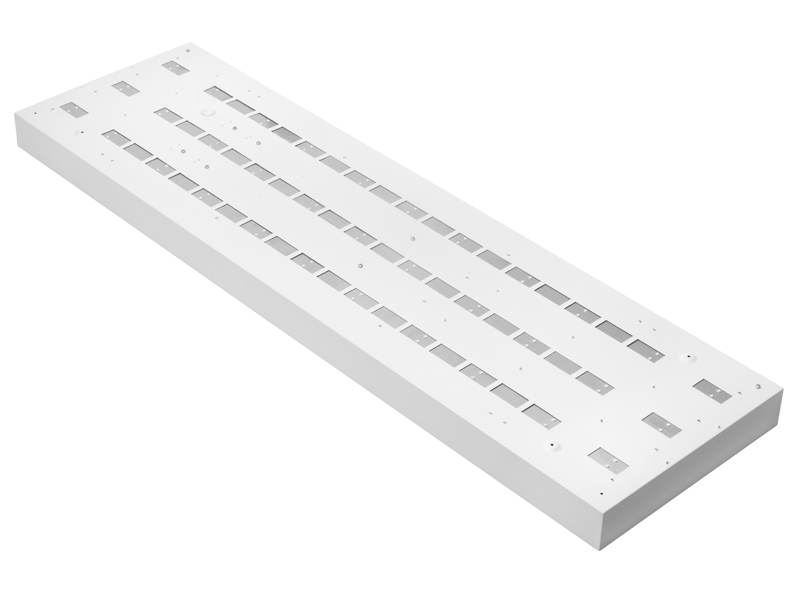

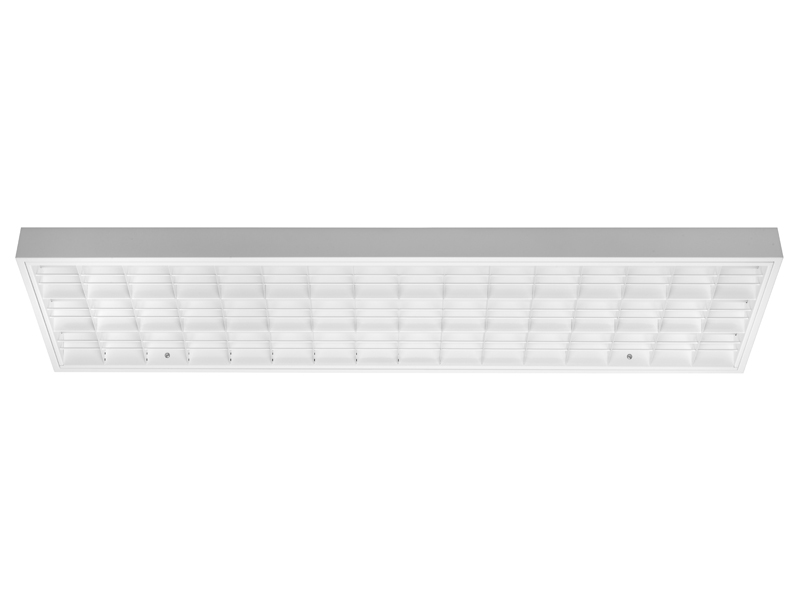

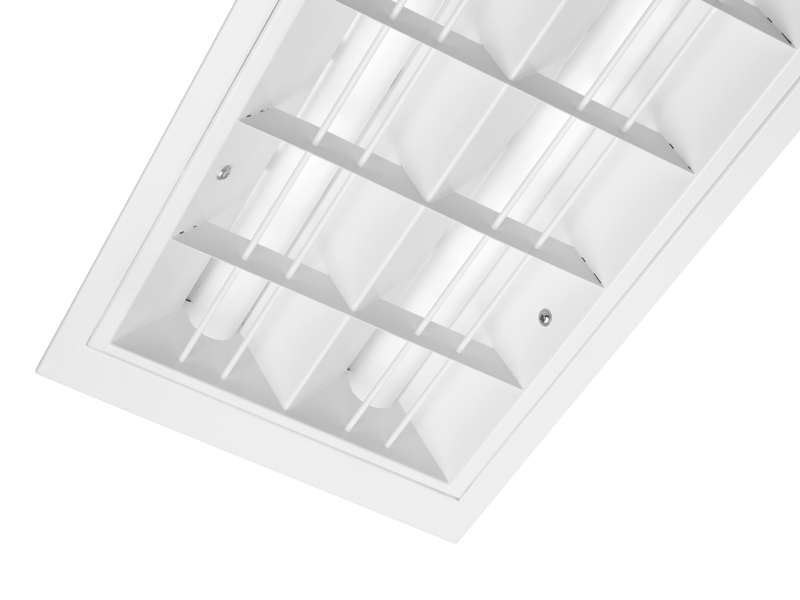

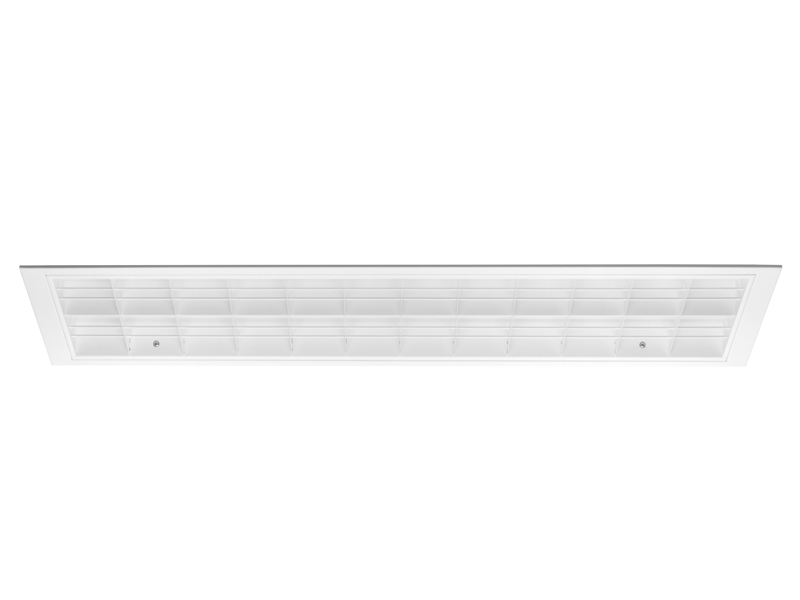

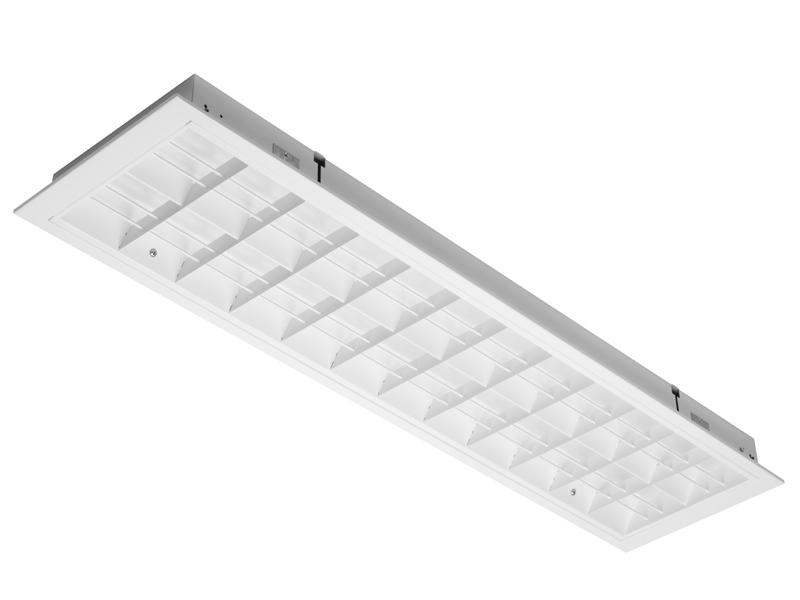

LED luminaire with direct wide light distribution. Luminaire housing made of 0,6mm sheet steel, white powder coated finish (RAL9003). Luminaire is equipped with solid louvre made of 0,6mm sheet steel (RAL9003), resistant against ball impacts. The louvre is reinforced with two steel rods (4mm diameter), additionaly fixed to the housing with screws, for prevention to fall out. LED modules mounted on internal massive aluminium tray for optimum thermal management and long life time. Ventilated bottom of the housing. Internal electronics with expanded temperature range.

Lamp	LED
Cooling	PASÍVNE
Class	I
Ingress protection	IP20
Weight	9,3-11,5kg

SPORT LED (1MB)

INSTALLATION TYPE
• SUR – surface mounted
• SUS – suspended installation

OPTICAL SYSTEM
• RWL (reinforced white louvre) – white painted 0,6mm steel louver reinforced with 4mm steel rods, secured by four screws
and two steel ropes, symmetrical light distribution

ELECTRICAL EQUIPMENT

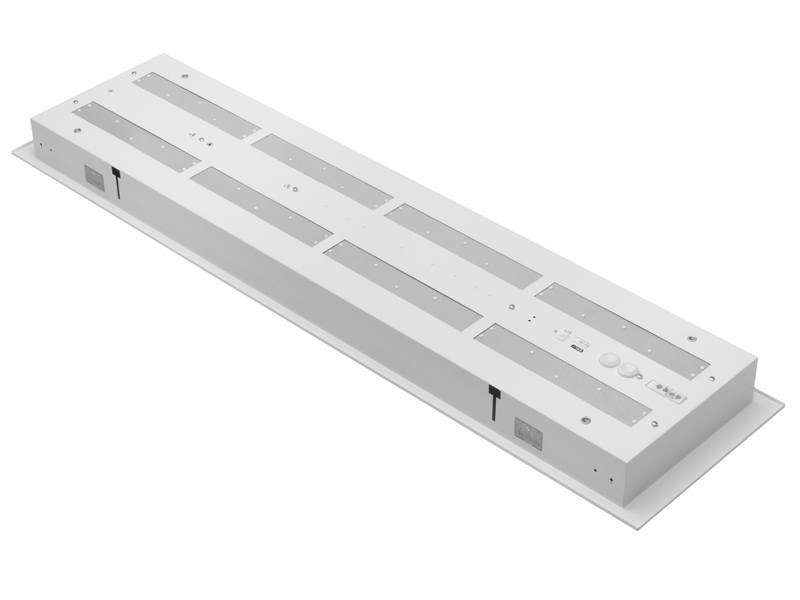

• last generation linear LED modules installed on ventilated aluminium bottom, covered with linear frosted diffuser
• electronic LED drivers with overtemperature protection and expanded temperature range
• screwless terminal block with strain relief, max. 2,5mm2

OPTIONAL EQUIPMENT
• wiring with emergency unit (1 or 3h)
• wiring with dimmable electronic control gear (DIM 1-10V, DSI, DALI)
• various colour finishing

SPECIFICATION

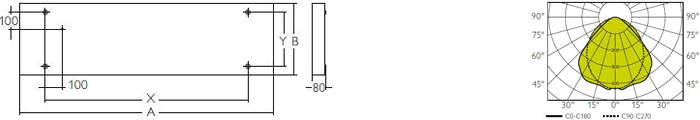

Type*	System power (W)	Equivalent	A/X (mm)	B/Y (mm)	kg
SPORT LED SUR 12 1x2L 10.000lm	86	3x54W T5	1200/900	304/198	9,3
SPORT LED SUR 12 1x2L 12.000lm	107	4x54W T5	1200/900	304/198	9,3
SPORT LED SUR 12 1x3L 17.600lm	160	4x80W T5	1200/900	426/320	10,2
SPORT LED SUR 15 1x2L 14.500lm	130	3x80W T5	1500/1200	304/198	10,8
SPORT LED SUR 15 1x3L 21.000lm	190	5x80W T5	1500/1200	426/320	11,5

*net lumen output of the luminaire by 4000K

Code	Type
SD00SUR0LE10000	SPORT LED SUR 12 1x2L 10.000lm
SD00SUR0LE12000	SPORT LED SUR 12 1x2L 12.000lm
SD01SUR0LE17600	SPORT LED SUR 12 1x3L 17.600lm
SD10SUR0LE14500	SPORT LED SUR 15 1x2L 14.500lm
SD11SUR0LE21000	SPORT LED SUR 15 1x3L 21.000lm

CCT	Optics	CRI	Control gear	Colour	Accessories

3000K	RWL	80	ECG	white	M 3h
4000K		90	DALI		M 1h
6500K			DSI
			DIM 1-10V

SPORT LED

SPORT LED SUR

Company

Vision
Enlit
Resources

Services

Download

Product Sheets
Company presentations

Contact
