POLY LED

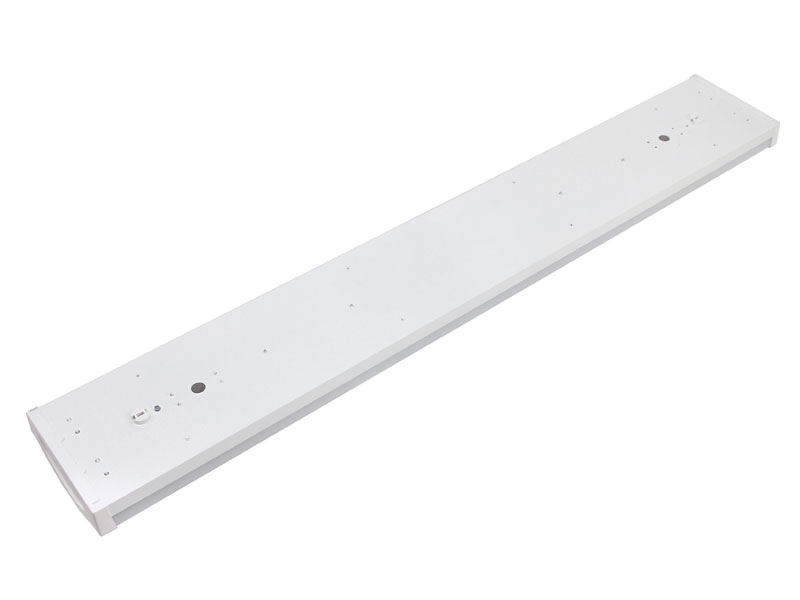

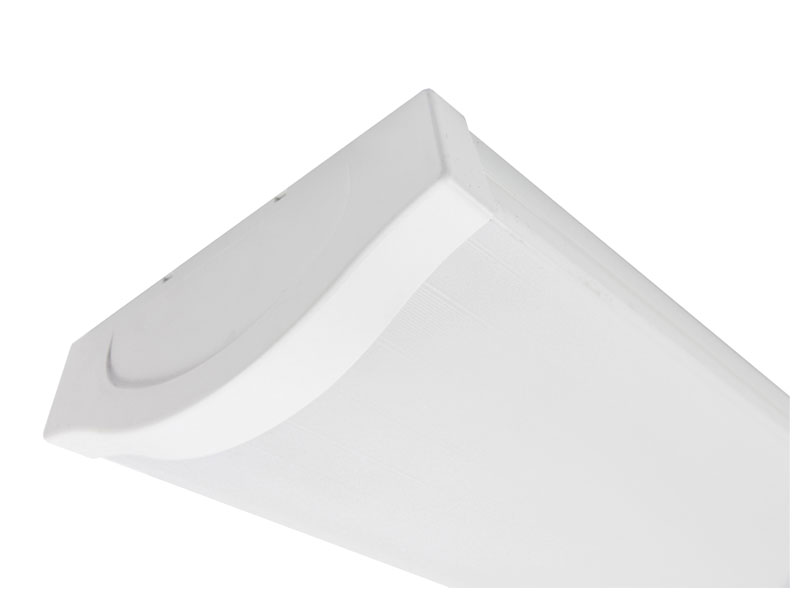

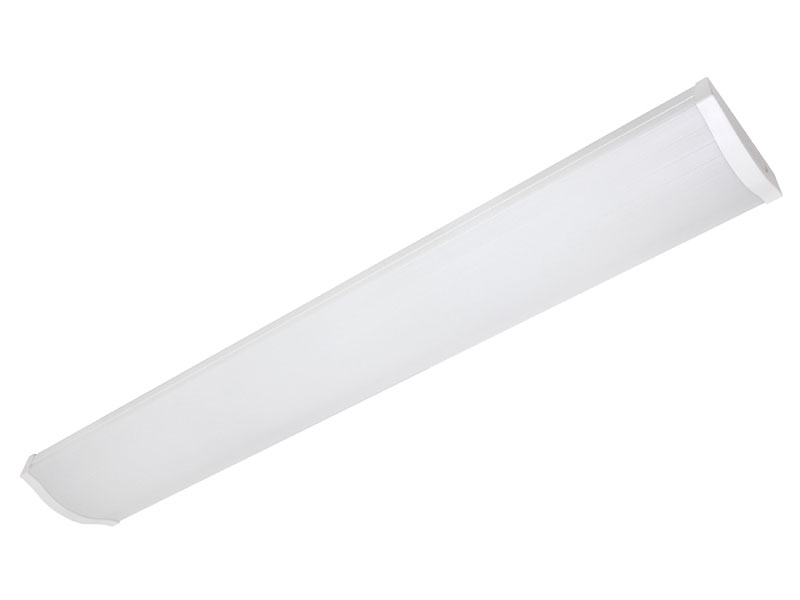

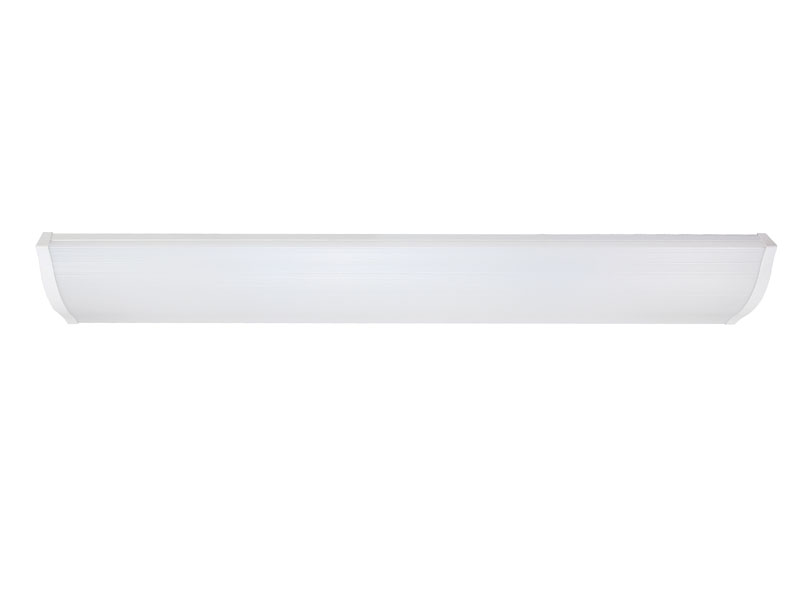

Luminaire is constructed to use with linear LED boards. Luminaire housing is made of sheet steel, surface treated with white powder coated colour. Diffuser is made of thermoplastic, stabilized against UV radiation. Diffuser is fixed to luminaire through two hinged white plastic end caps. Linear LED modules are placed on internal aluminium mounting plate for optimum thermal management. Luminaire is designed for direct mounting on solid surface.
| Lamp | LED |
| Cooling | PASSIVE |
| Class | I |
| Ingress protection | IP40 |
| Weight | 2,4-3,3kg |
INSTALLATION TYPE
• SUR – surface mounted installation
OPTICAL SYSTEM
• DO – plastic opal diffuser
ELECTRICAL EQUIPMENT
• linear LED modules
• lampholder G5
• 3-pole screwless terminal block, max. 2,5mm2
• cable opening entry completed with cable gland
OPTIONAL EQUIPMENT/ACCESSORIES
• wired with dimmable control gear (DIM 1-10V, TouchDIM or DALI)
SPECIFICATION
| Type* | System power (W) | A (mm) | B (mm) | H (mm) | kg | |
| POLY LED 3300lm | 33 | 1254 | 200 | 70 | 2,4 | |
| POLY LED 5100lm | 48 | 1254 | 200 | 70 | 2,4 | |
| POLY LED 5500lm | 52 | 1573 | 200 | 70 | 3,3 | |
*net lumen output of the luminaire by 4000K
| Code | Type |
| POL00000LE03300 | POLY LED 3300lm |
| POL00000LE05100 | POLY LED 5100lm |
| POL00000LE05500 | POLY LED 5500lm |
| CCT | Optics | CRI | Control gear | Colour | Accessories | |||||
| 3000K | DO | 80 | ECG | M1h | ||||||
| 4000K | 90 | TouchDIM | M3h | |||||||
| 6500K | DIM 1-10V | |||||||||
| DALI | ||||||||||
