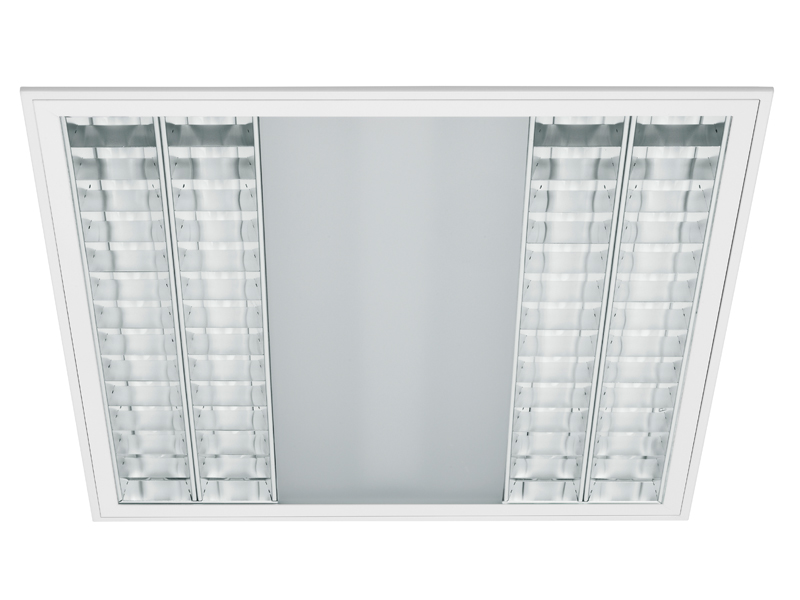

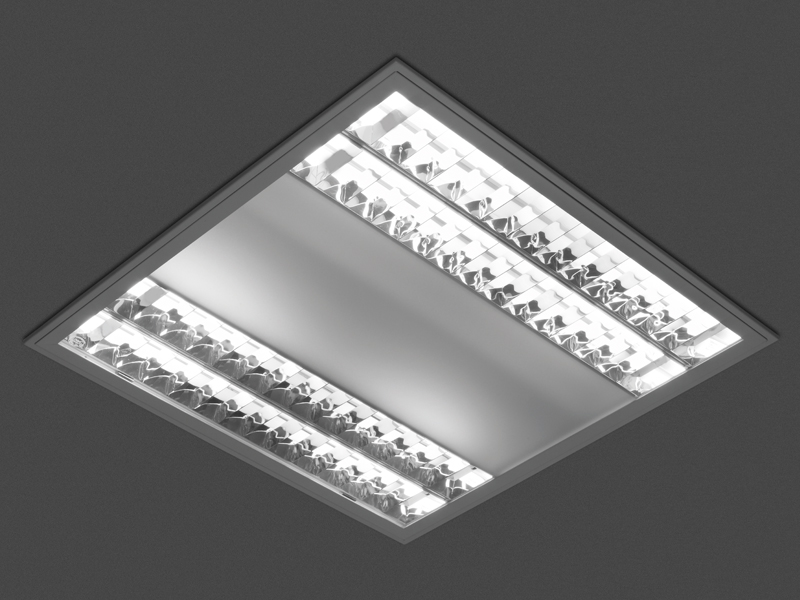

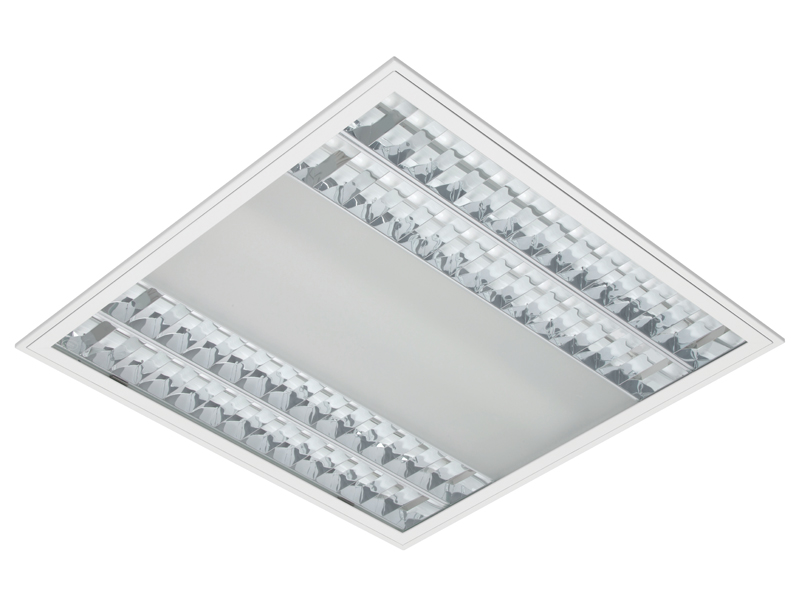

BASIC LED IP65 L

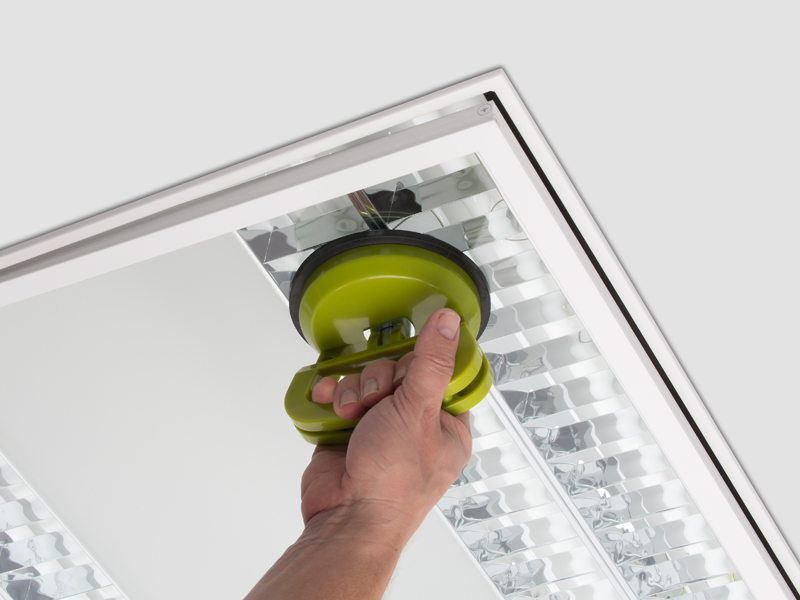

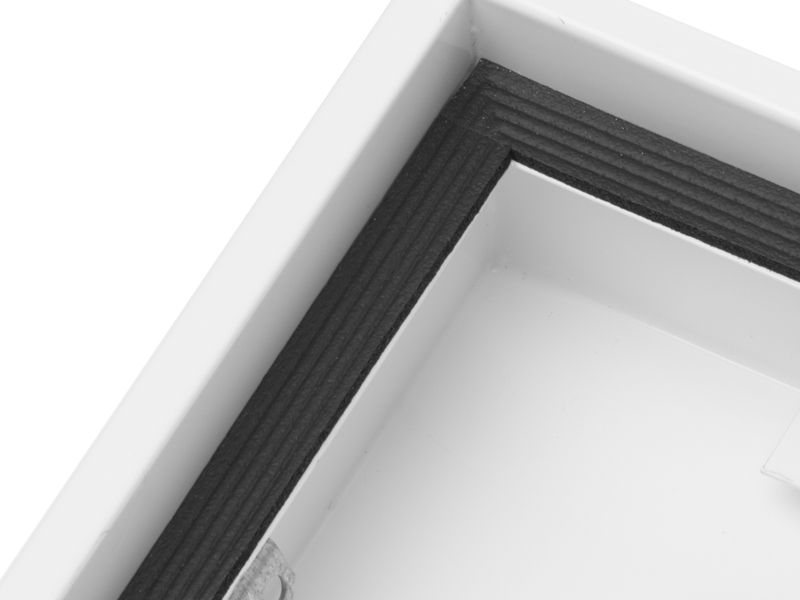

Recessed luminaire for ceilings with exposed grids, module size 600×600. Luminaire housing made of 0,6mm sheet steel, white powder coated finish (RAL9003). Luminaire housing is welded, completely enclosed without any openings. All internal components are mounted on gear tray, fixed to the housing bottom. Optical system is fixed in aluminium frame, white powder coated finish (RAL9003). Frame is attached to the housing with 4 strong inox springs. The gap between the frame and housing is sealed with microporous gasket. Bottom side of diffuser have always smooth surface for easy maintenance and cleaning.
| Lamp | LED |
| Cooling | PASSIVE |
| Class | I |
| Ingress protection | IP65 |
| Weight | 8,3-14,3kg |
INSTALLATION TYPE
• RT600 – recessed luminaire, ceiling with exposed grids, module size 600×600
• SUR – surface mounted version
OPTICAL SYSTEM
• PSL – transparent diffuser, made of 4mm hardened glass ESG (VSG ESG laminated hardened glass on request)
in combination with polished parabolic louvre made of anodised aluminium
• PML – transparent diffuser, made of 4mm hardened glass ESG (VSG ESG laminated hardened glass on request)
in combination with matt parabolic louvre made of anodised aluminium
ELECTRICAL EQUIPMENT
• linear LED modules mounted on aluminium gear tray, fixed to the bottom of luminaire housing
• electronic LED driver
• 3 or 5-pole screwless terminal block with strain relief, max. 2,5mm2
• cable entry equipped with IP65 rubber cable gland
• pressure equalisation system
OPTIONAL EQUIPMENT
• wiring with emergency unit (1 or 3h)
• wiring with dimmable electronic control gear (analogue, DSI, DALI)
• ESG VSG (laminated hardened glass) bottom cover
SPECIFICATION

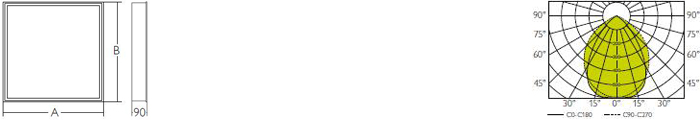

| Type* | System power (W) | Equivalent | A (mm) | B (mm) | kg | |
| BASIC LED IP65 2x2L RT600 5200lm | 50 | 4x24W T5 | 595 | 595 | 8,3 | |
| BASIC LED IP65 12×3 1x2L RT600 5200lm | 50 | 2x54W T5 | 1195 | 295 | 8,6 | |
| BASIC LED IP65 12×6 2x2L RT600 10400lm | 100 | 4x54W T5 | 1195 | 595 | 14,3 | |
*net lumen output of the luminaire by 4000K
| Code | Type |
| BP01RT60LE05200 | BASIC LED IP65 2x2L RT600 5200lm |
| BP11RT60LE05200 | BASIC LED IP65 12×3 1x2L RT600 5200lm |
| BP21RT60LE10400 | BASIC LED IP65 12×6 2x2L RT600 10400lm |
| CCT | Optics | CRI | Control gear | Colour | Accessories | |||||
| 3000K | PSL MIRO4 | 80 | ECG | RAL 9003 | M 3h | |||||
| 4000K | PML MIRO5 | 90 | DIM 1-10V | M 1h | ||||||
| 6500K | DSI | ESG VSG | ||||||||
| DALI |
