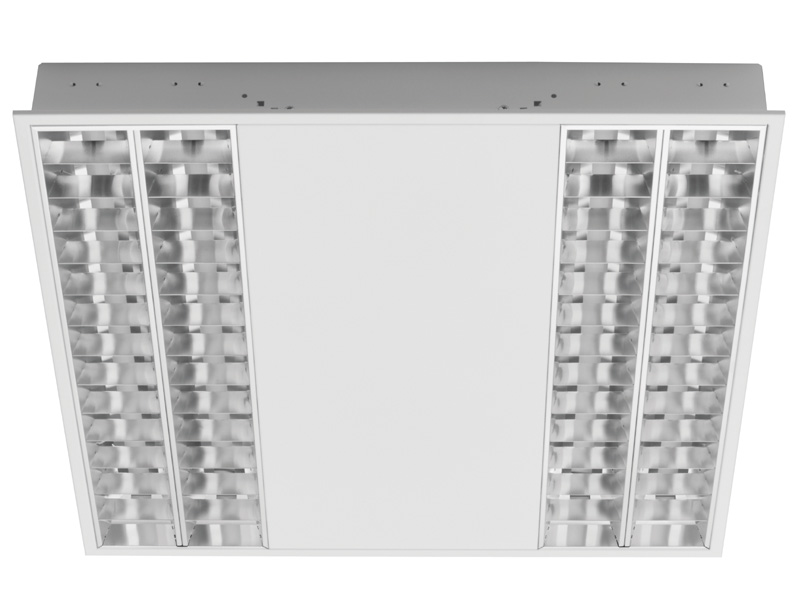

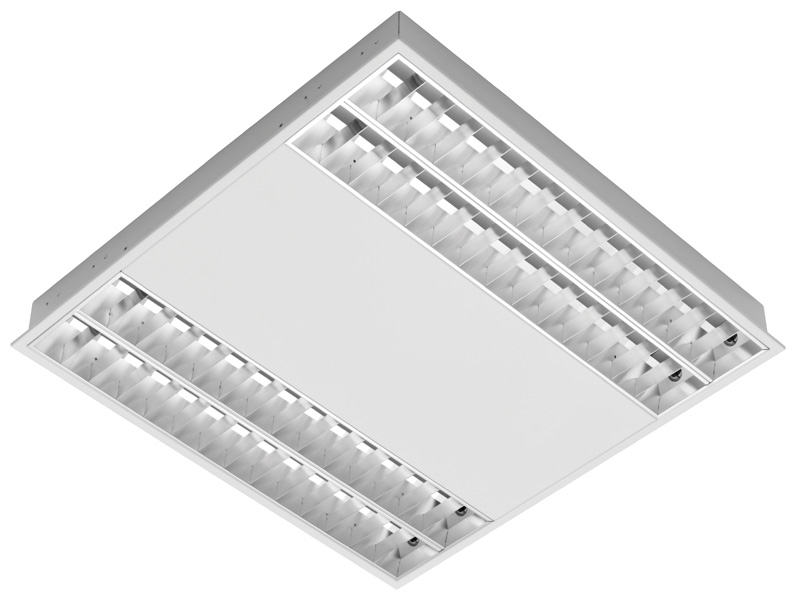

BASIC II 2x2L RT600
Recessed luminaire for T5 lamps. Direct light distribution. Available with different optical systems. Equipped with polished, high efficient double parabolic louvre made of anodized aluminium, suitable for workplaces with display screen units (luminance of light emitting area is in compliance with EN 12464-1).
The louvre is fixed to housing with quick clamping springs. Housing of luminaire is made of sheet steel of thickness 0,6mm, bottom cover made of solid or perforated sheet (marking -P). Standard surface treatment – white powder coated colour (RAL 9003).
Other execution of the louvre and other surface treatment is possible on request.
| Lamp | T5 |
| Lamp holder | G5 |
| Class | I |
| Ingress protection | IP20 |
| Weight | 5kg |
INSTALLATION TYPE
• RT600 (recessed) – recessed luminaire, ceiling with visible T-profile, module 600×600
OPTICAL SYSTEM
• PSL (parabolic specular louvre) – polished, anodized, aluminium, double parabolic louvre with glare prevention
• PML (parabolic matt louvre) – matt, anodized, aluminium, double parabolic louvre
ELECTRICAL EQUIPMENT
• electronic control gear for one/two linear fluorescent lamps T5
• lamp holders G5
• 3-pole screwless terminal block with strain relief, max. 2,5mm2
• cable opening entry completed with cable gland
• through wiring possibility
OPTIONAL EQUIPMENT / ACCESSORIES
• lamps included in luminaire
• wired with multi-watt control gear
• wired with emergency unit (1 or 3h)
• wired with dimmable control gear (DIM 1-10V, DSI or DALI)
• components for fast electrical connection (Wieland, Wago, Isodom)
SPECIFICATION
| Type | A (mm) | B (mm) | H (mm) | kg | |
| BASIC II 2x2L RT600 T5 4x14W | 595 | 595 | 69 | ||
| BASIC II 2x2L RT600 T5 4x24W | 595 | 595 | 69 | ||
| BASIC II 2x2L-P RT600 T5 4x14W | 595 | 595 | 69 | ||
| BASIC II 2x2L-P RT600 T5 4x24W | 595 | 595 | 69 | ||
| Code | Type |
| BA50RT600T54014 | BASIC II 2x2L RT600 T5 4x14W |
| BA50RT600T54024 | BASIC II 2x2L RT600 T5 4x24W |
| BA5PRT600T54014 | BASIC II 2x2L-P RT600 T5 4x14W |
| BA5PRT600T54024 | BASIC II 2x2L-P RT600 T5 4x24W |
| Control gear | Optics | Colour | Lamp | Emergency unit | Accessories | |||||
| ECG | PSL | RAL 9003 | 14W/827 | M 3h | Wieland 3p | |||||
| ECG-MULTI | PML | 14W/830 | Wago 3p | |||||||
| DIM 1-10V | 14W/835 | Isodom | ||||||||
| DSI | 14W/840 | |||||||||
| DALI | 14W/865 | |||||||||
| 24W/827 | ||||||||||
| 24W/830 | ||||||||||
| 24W/835 | ||||||||||
| 24W/840 | ||||||||||
| 24W/865 | ||||||||||
| 24W/880 | ||||||||||
| 24W/940 | ||||||||||
| 24W/965 |
